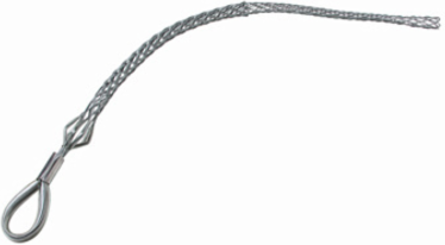

Pass & Seymour P1001 Multi-Weave Pulling Grip with Rotating Eye, 1.000-1.240 Inch Cable Diameter, 52 Inch Mesh Length, 1-3/8 Inch Eye Diameter, 24,600 lbs Break Strength
- MPN: P1001
- UPC: 785007991949
- PPN: P-S-P1001
- UNSPSC: 39121725
CAD
$246.11
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Multi-Weave Pulling Grip with Rotating Eye, 1.000-1.240 Inch Cable Diameter, 52 Inch Mesh Length, 1-3/8 Inch Eye Diameter, 24,600 lbs Break Strength
Features
- Multi-weave pulling grips are constructed of high strength galvanized steel and are designed for pulling aluminum or copper bare conductor, wire rope and insulated cables.
- These grips are used in applications such as distribution line stringing and overhead transmission.
- Multi-weave pulling grips are available with a flexible and rotating eye, which can be attached to a swivel.
- Description : Rotating Eye: The forged steel rotating eye will thread through sheaves and blocks without binding, but is not a swivel and will not turn under tension.
- The rotating eye can turn to relieve pulling torque when tension is relaxed.
- Mesh Length: 52: Eye Diamater: 1-3/8
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Application Sector | Industrial |
| Standard | UL/CSA Approval (consult factory) |
| Special Features | Multi-weave pulling grips are constructed of high strength galvanized steel and are designed for pulling aluminum or copper bare conductor, wire rope and insulated cables. These grips are used in applications such as distribution line stringing and overhead transmission. Multi-weave pulling grips are available with a flexible and rotating eye, which can be attached to a swivel. The forged steel rotating eye will thread through sheaves and blocks without binding, but is not a swivel and will not turn under tension. The rotating eye can turn to relieve pulling torque when tension is relaxed. |
| Maximum Cable Range | 1.0 in |
| Mesh Length | 65.0 in |
| Cable Diameter Range | 1.00-1.20 in |
| Indoor/Outdoor | Both |
| Product Line | Pass & Seymour |
|---|---|
| Construction | Support and Strain Relief Grips, Various Types of Pulling |
| Capacity | Various Cable Diameter Ranges |
| Mounting | Consult the Factory for Mounting Recommendations |
| Minimum Cable Range | 1.24 in |
| Type | Pulling Grip |
| Approximate Break Strength | 25402.0 lb |
| Eye Style | Rotating |
