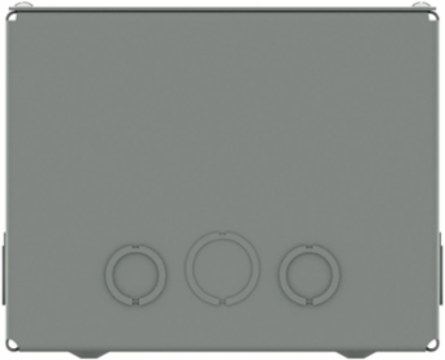

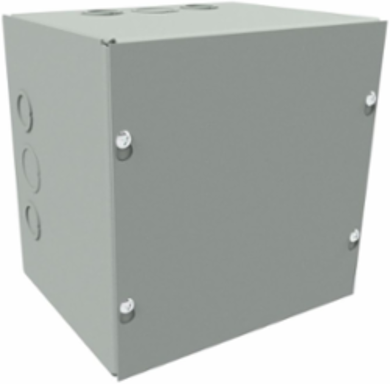

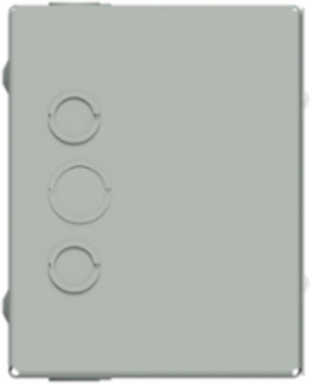

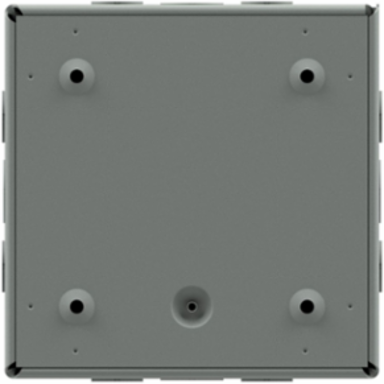

Wiegmann SC101006 N1 Screw-Cover 10X10X6 Carbon Steel - Gray
- MPN: SC101006
- UPC: 786725313600
- PPN: HBL-SC101006
- UNSPSC: 39121324
CAD
$111.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N1 Screw-Cover 10X10X6 Carbon Steel - Gray
Features
- Fabricated from 16 gauge steel. Flat, removable covers fastened with plated steel screws. Cover design permits easy removal without extracting cover screws. Mounting holes on back of box. Removable concentric knockouts on all four sides.
Documentation & Downloads
Specifications
Key Specifications
| Cubic Capacity | 600 cu.in |
|---|---|
| Mounting | Embossed Mounting Holes |
| Standard | cULus |
| Stock Indicator | S - Shelf Stock |
| Actual Height | 10.125 in |
| Color | Ansi-61 Gray Textured |
| Height | 10 in |
| Width | 10 in |
| Cable Entry | Knock Outs |
| Finish Type | Textured |
| Mounting Type | Embossed Mounting Holes |
| Type | Enclosure |
| Description - Invoice | SC PULL BOX,CS,10X10X6 |
| Harmonization Code | 7326909999 |
| Lead Time | 7 wk |
| Order Multiple | 1 EA |
| Sub Class Code | P01P018 |
| Construction | Spot Welded |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 8.600 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Finish | Textured |
|---|---|
| NEMA Rating | 1 |
| ARRA Compliant | Contact Manufacturer |
| Country of Origin | Mexico |
| Actual Width | 10.125 in |
| Depth | 6 in |
| Weight | 8.6 lb. |
| Application | Designed for use as a junction box and pull box in commercial and general industrial applications. Flush covers must be ordered separately for flush mount applications. |
| Cover Type | Screw Cover |
| Knockouts | Yes |
| Nema Rating | 1 |
| Class Code | P01 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 7.600x11.000x10.750 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725313600 |
| Pallet Height | 50.100 in |
| Pallet Weight | 643.680 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Certified Listed | cULus |
| Listings | UL, CSA |
|---|
