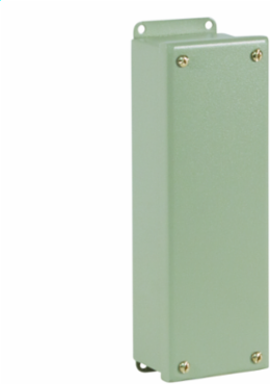

Wiegmann PB16BC N12 16 Pushbutton Enclosure w/ Blank Cover 11.7X10.7X3 Carbon Steel - Gray
- MPN: PB16BC
- UPC: 786725845484
- PPN: HBL-PB16BC
- UNSPSC: 39121326
CAD
$541.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 16 Pushbutton Enclosure w/ Blank Cover 11.7X10.7X3 Carbon Steel - Gray
Features
- Designed to hold all standard brands of pushbuttons, switches and pilot lights
- Provide protection from dust, dirt, oil and water.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Actual Height | 11.750 in |
| Description - Slang | PB, PB Box, Push Button, Pushbutton, opertor box, operator terminal |
| Color | Ansi-61 Gray Textured |
| Depth | 3 in |
| Mounting | External Mounting Plates |
| Number of Holes | 0 |
| Type | Standard Push Button Enclosure |
| Weight | 11 lb. |
| Finish Type | Polyester Powder |
| Nema Rating | 12 |
| Class Code | P08 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P08P099 |
| UL Listed | Yes |
| Material | Carbon Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 11.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Actual Depth | 3.09 in |
|---|---|
| Actual Width | 10.750 in |
| Application | Designed to hold all standard brands of pushbuttons, switches, and pilot lights. Provide protection from dust, dirt, oil and water. |
| Cubic Capacity | 396 cu.in |
| Height | 12 in |
| NEMA Rating | 12 |
| Standard | cULus |
| Width | 11 in |
| Cover Type | Pushbutton;Screw |
| Mounting Type | External Mounting Plates |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | PB,OT,CS,BC,11.75X10.75X3.00 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| Construction | Continuously Welded Seams |
| Series | PB Series |
| BOX SIZE | 4.450x13.600x11.700 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725845484 |
| Pallet Height | 49.000 in |
| Pallet Weight | 783.000 lb. |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
