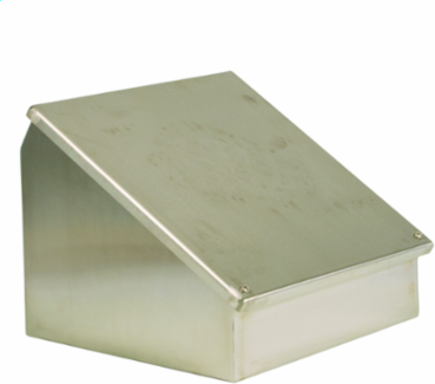

Wiegmann WC12C20SS N12 Operator Interface Consolet 12X20 304 Stainless Steel
- MPN: WC12C20SS
- UPC: 786725849475
- PPN: HBL-WC12C20SS
- UNSPSC: 39121323
CAD
$2424.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 Operator Interface Consolet 12X20 304 Stainless Steel
Features
- Fabricated from 304 stainless steel
- Seams are continuously welded and ground smooth
- Grounding provisions
- Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Application | Designed to house a variety of electronic control or instrumentation devices. Consolets provide protection from dust, dirt, oil, and water. Flexible design allows for mounting on either of two sides, creating control surfaces of 30 degrees or 60 degrees. |
| Cubic Capacity | 2160 cu.in |
| Height | 12 in |
| NEMA Rating | 12 |
| Standard | cULus |
| Width | 20 in |
| Knockouts | No |
| Nema Rating | 12 |
| Class Code | P03 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P03P050 |
| UL Listed | Yes |
| Material | Stainless Steel |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 24.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 |
| Actual Depth | 9.09 in |
|---|---|
| Cover Type | Screw Cover |
| Depth | 9 in |
| Mounting | Grounding Provisions |
| Special Features | Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously welded seams ground smooth, less knockouts or holes. Captive cover screws thread into sealed wells. Control panel is continuously hinged along bottom edge. Closed cell oil resistant neoprene gasket. Grounding provisions included. |
| Type | Console |
| Weight | 24 lb. |
| Mounting Type | Grounding Provisions |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CONSOLETS,OIL-TIGHT,SS,12"X20" |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | Contact Manufacturer |
| Construction | Continuously Welded Seams |
| Series | WC-SS Series |
| BOX SIZE | 12.000x9.090x20.000 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725849475 |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
