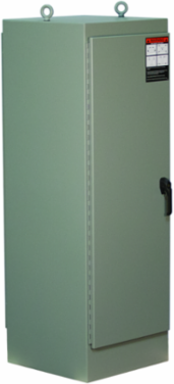

Wiegmann WA903624FSDA N12 Single Door Dual Access Freestanding 90X36X24 Carbon Steel - Gray
Wiegmann WA903624FSDA N12 Single Door Dual Access Freestanding 90X36X24 Carbon Steel - Gray
- MPN: WA903624FSDA
- UPC: 786725416202
- PPN: HBL-WA903624FSDA
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
N12 Single Door Dual Access Freestanding 90X36X24 Carbon Steel - Gray
Features
- Designed to protect electrical and electronic controls, components and instruments in typical industrial environments
- Enclosure protects enclosed equipment from dust, dirt, oil and dripping water
- These enclosures are used in machine tool applications for housing motor starters, drivers, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries.
Specifications
Specifications
- Country of Origin
- Mexico
- Actual Height
- 90.120 in
- Number of Doors (Fixed)
- 1
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 77760 cu.in
- Finish
- Textured
- Mounting
- Freestanding
- Standard
- cULus
- Width
- 36 in
- Finish Type
- Textured
- Nema Rating
- 12
- Class Code
- P02
- Freight Class Code
- 06111001
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P02P034
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 90.120x24.250x36.120 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725416202
Actual Depth24.25 in
Actual Width36.12 in
ApplicationDesigned to protect electrical and electronic controls, components, and instruments in typical industrial environments. Enclosures protect enclosure equipment from dust, dirt, oil, and dripping water. These enclosures are used in machine tool applications
Cover TypeDoor
Depth24 in
Height90 in
NEMA Rating12
TypeEnclosure
Weight536 lb.
Mounting TypeFreestanding
ARRA CompliantContact Manufacturer
Description - InvoiceENCL,N12,FS,DA,1D,90X36X24
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type3 Point Keylocking-Padlocking Combo
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - Gross Weight per Pack536.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
