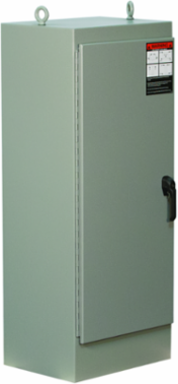

Wiegmann WA903624FS N12 Single Door Freestanding 90X36X24 Carbon Steel - Gray
- MPN: WA903624FS
- UPC: 786725417353
- PPN: HBL-WA903624FS
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 Single Door Freestanding 90X36X24 Carbon Steel - Gray
Features
- Designed to protect electrical and electronic controls, components and instruments in typical industrial environments
- Enclosure protects enclosure equipment from dust, dirt, oil and dripping water
- These enclosures are used in machine tool applications for housing motor starters, drivers, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment
- The addition of 19-inch rack mounting accessories make these enclosures ideal for providing rugged protection for sensitive rack mounted components in harsh industrial environments
- The enclosures are found extensively in found in automotive, pulp and paper, wood products, textile and similar industries
- Style includes single door single access (single door on front).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 90.120 in
- Number of Doors (Fixed)
- 1
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 77760 cu.in
- Finish
- Textured
- Mounting
- Freestanding
- Standard
- cULus
- Width
- 36 in
- Finish Type
- Textured
- Nema Rating
- 12
- Class Code
- P02
- Freight Class Code
- 06111001
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P02P034
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 90.120x24.120x36.120 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725417353
- Pallet Weight
- 0.000 lb.
Actual Depth24.12 in
Actual Width36.12 in
ApplicationDesigned to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used in machine tool applications for housing motor startes, drives, contactors, PLC's as well as a wide variety of other electrical and electronic equipment. The addition of 19-inch rack mounting accessories make these enclosures ideal for providing rugged protection for sensitive rack mounted components in harsh industrial environments. The enclosures are found extensively in automotive, pulp and paper, wood products, textile and similar industries.
Cover TypeDoor
Depth24 in
Height90 in
NEMA Rating12
TypeEnclosure
Weight595 lb.
Mounting TypeFreestanding
ARRA CompliantContact Manufacturer
Description - InvoiceENCL,NEMA12,FS,1D,90X36X24
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type3 Point Keylocking-Padlocking Combo
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - Gross Weight per Pack460.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- Listings
- UL, CSA
Certified ListedcULus
