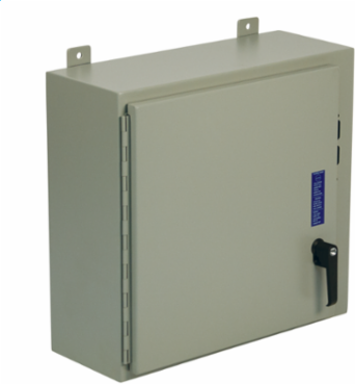

Wiegmann SDN12483708PL N12 Single Door Flanged Disconnect with Handle 48X37X8 Carbon Steel - Gray
Wiegmann SDN12483708PL N12 Single Door Flanged Disconnect with Handle 48X37X8 Carbon Steel - Gray
- MPN: SDN12483708PL
- UPC: 786725863112
- PPN: HBL-SDN12483708PL
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3472.57/ EA
Description
N12 Single Door Flanged Disconnect with Handle 48X37X8 Carbon Steel - Gray
Features
- Includes Handle and Interlocking door catch.
Specifications
Specifications
- Country of Origin
- Mexico
- Actual Width
- 37.38 in
- Application
- These general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers.
- Cubic Capacity
- 14208 cu.in
- Finish
- Polyester Powder
- Mounting
- External Mounting Feet
- Standard
- cULus
- Width
- 37 in
- Finish Type
- Polyester Powder
- Nema Rating
- 12
- Class Code
- P02
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P02P033
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 48.000x8.130x37.380 (in)
Actual Depth8.13 in
Number of Doors (Fixed)1
ColorAnsi-61 Gray Textured
Depth8 in
Height48 in
NEMA Rating12
TypeEnclosure
Weight137 lb.
Mounting TypeExternal Mounting Feet
ARRA CompliantContact Manufacturer
Description - InvoiceENCL,N12,DISC,SD,W/HANDLE,48X37.375X8
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type3-Point
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725863112
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
