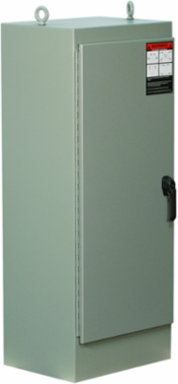

Wiegmann WA722424FS N12 Single Door Freestanding 72X24X24 Carbon Steel - Gray
Wiegmann WA722424FS N12 Single Door Freestanding 72X24X24 Carbon Steel - Gray
- MPN: WA722424FS
- UPC: 786725417100
- PPN: HBL-WA722424FS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4889.63/ EA
Description
N12 Single Door Freestanding 72X24X24 Carbon Steel - Gray
Features
- Designed to protect electrical and electronic controls, components and instruments in typical industrial environments
- Enclosure protects enclosed equipment from dust, dirt, oil and dripping water
- These enclosures are used in machine tool applications for housing motor starters, drivers, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries.
Specifications
Specifications
- Actual Depth
- 24.12 in
- Actual Width
- 24.12 in
- Country of Origin
- US
- Number of Doors (Fixed)
- 1
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 41472 cu.in
- Finish
- Textured
- Mounting
- Freestanding
- Standard
- cULus
- Width
- 24 in
- Finish Type
- Textured
- Nema Rating
- 12
- Class Code
- P02
- Freight Class Code
- 06111001
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P02P034
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 79.000x40.000x32.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725417100
- Pallet Height
- 83.500 in
- Pallet Weight
- 345.000 lb.
Actual Height72.120 in
Buy American CompliantContact Manufacturer
Each - Width32.000 in
ApplicationDesigned to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used in machine tool applications for housing motor startes, drives, contactors, PLC's as well as a wide variety of other electrical and electronic equipment. The addition of 19-inch rack mounting accessories make these enclosures ideal for providing rugged protection for sensitive rack mounted components in harsh industrial environments. The enclosures are found extensively in automotive, pulp and paper, wood products, textile and similar industries.
Cover TypeDoor
Depth24 in
Height72 in
NEMA Rating12
TypeEnclosure
Weight300 lb.
Mounting TypeFreestanding
ARRA CompliantContact Manufacturer
Description - InvoiceENCL,NEMA12,FS,1D,72X24X24
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type3 Point Keylocking-Padlocking Combo
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - Gross Weight per Pack300.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorYes
