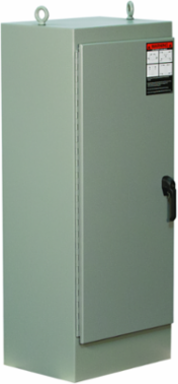

Wiegmann WA903620FS N12 Single Door Freestanding 90X36X20 Carbon Steel - Gray
- MPN: WA903620FS
- UPC: 786725417278
- PPN: HBL-WA903620FS
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
N12 Single Door Freestanding 90X36X20 Carbon Steel - Gray
Features
- Designed to protect electrical and electronic controls, components and instruments in typical industrial environments
- Enclosure protects enclosed equipment from dust, dirt, oil and dripping water
- These enclosures are used in machine tool applications for housing motor starters, drivers, contactors, PLC's, as well as a wide variety of other electrical and electronic equipment found in automotive, pulp and paper, wood products, textile and similar industries.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Actual Height | 90.120 in |
| Number of Doors (Fixed) | 1 |
| Color | Ansi-61 Gray Textured |
| Cubic Capacity | 64800 cu.in |
| Finish | Textured |
| Mounting | Freestanding |
| Standard | cULus |
| Width | 36 in |
| Finish Type | Textured |
| Nema Rating | 12 |
| Class Code | P02 |
| Freight Class Code | 06111001 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Sub Class Code | P02P034 |
| UL Listed | Yes |
| Material | Carbon Steel |
| BOX SIZE | 90.120x20.120x36.120 (in) |
| Carton - Number of Sub Packs | 1 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00786725417278 |
| Pallet Weight | 0.000 lb. |
| Actual Depth | 20.12 in |
|---|---|
| Actual Width | 36.12 in |
| Application | Designed to protect electronic controls, components and instruments in typical industrial environments from dust, dirt, oil and dripping water. These enclosures are used in machine tool applications for housing motor startes, drives, contactors, PLC's as well as a wide variety of other electrical and electronic equipment. The addition of 19-inch rack mounting accessories make these enclosures ideal for providing rugged protection for sensitive rack mounted components in harsh industrial environments. The enclosures are found extensively in automotive, pulp and paper, wood products, textile and similar industries. |
| Cover Type | Door |
| Depth | 20 in |
| Height | 90 in |
| NEMA Rating | 12 |
| Type | Enclosure |
| Weight | 550 lb. |
| Mounting Type | Freestanding |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | ENCL,NEMA12,FS,1D,90X36X20 |
| Harmonization Code | 7326908688 |
| Lead Time | 21 wk |
| Order Multiple | 1 EA |
| Stock Indicator | S - Shelf Stock |
| Latches Type | 3 Point Keylocking-Padlocking Combo |
| Construction | Continuously Welded Seams |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 430.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 1 EA |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | Contact Manufacturer |
|---|---|
| Listings | UL, CSA |
| Certified Listed | cULus |
|---|
