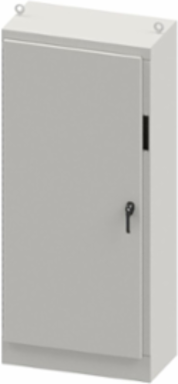

Wiegmann WA90XM3924U N12 Single Door Right Flanged Disconncet 90X39.5X24 Carbon Steel - Gray
Wiegmann WA90XM3924U N12 Single Door Right Flanged Disconncet 90X39.5X24 Carbon Steel - Gray
- MPN: WA90XM3924U
- UPC: 786725415878
- PPN: HBL-WA90XM3924U
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
N12 Single Door Right Flanged Disconncet 90X39.5X24 Carbon Steel - Gray
Features
- Designed for indoor use in protecting components from dust, dirt, oil and water
- Punching in right flange to house the following disconnect operating handles with appropriate adaptor plate: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class 9422 variable depth and cable mechanisms.
Specifications
Specifications
- Country of Origin
- Mexico
- Actual Height
- 90.130 in
- Number of Doors (Fixed)
- 1
- Color
- Ansi-61 Gray Textured
- Depth
- 24 in
- Height
- 90 in
- NEMA Rating
- 12
- Type
- Enclosure
- Weight
- 910 lb.
- Mounting Type
- Freestanding
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DISC,UN,HD,1D,FS,90X39.50X24
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 3-Point Padlocking Handle
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 910.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
Actual Depth24.13 in
Actual Width39.5 in
ApplicationThe Wiegmann universal cutout is used in large freestand and floorstand enclosures. Operator Adapter Kits are required in order to install the various manufacturers' hardware.
Cubic Capacity86400 cu.in
FinishPolyester Powder
MountingFreestanding
StandardcULus
Width40 in
Finish TypePolyester Powder
Nema Rating12
Class CodeP02
Freight Class Code06111001
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P035
UL ListedYes
MaterialCarbon Steel
BOX SIZE90.130x24.130x39.500 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725415878
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
