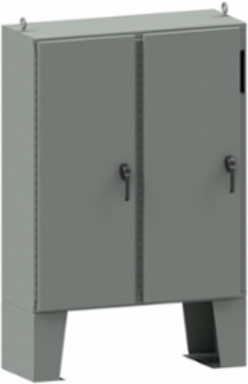

Wiegmann WA60X6112U N12 Two Door Floor-Mount Right Flanged Disconnect 60X61X12 Carbon Steel - Gray
Wiegmann WA60X6112U N12 Two Door Floor-Mount Right Flanged Disconnect 60X61X12 Carbon Steel - Gray
- MPN: WA60X6112U
- UPC: 786725428557
- PPN: HBL-WA60X6112U
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
N12 Two Door Floor-Mount Right Flanged Disconnect 60X61X12 Carbon Steel - Gray
Features
- Designed for indoor use in protecting components from dust, dirt, oil and water
- Punching in right flange (WAXU) or center post (WACPXU) to house the following disconnect operating handles with appropriate adaptor plate: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361 and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class Class9422 variable depth and cable mechanisms.
Specifications
Specifications
- Actual Depth
- 12.13 in
- Actual Width
- 61.75 in
- Country of Origin
- US
- Number of Doors (Fixed)
- 2
- Color
- Ansi-61 Gray Textured
- Depth
- 12 in
- Height
- 60 in
- NEMA Rating
- 12
- Type
- Enclosure
- Weight
- 535 lb.
- Mounting Type
- 15 in High Floor Stand Kit
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DISC,UN,N12,2D,RF,60X61X12
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 3-Point Padlocking Handle
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 535.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet Length
- 82.000 in
- Pallet Width
- 72.000 in
Actual Height60.130 in
Buy American CompliantContact Manufacturer
Each - Width72.000 in
ApplicationThe Wiegmann universal cutout is used in large freestand and floorstand enclosures.
Cubic Capacity44640 cu.in
FinishPolyester Powder
Mounting15 in High Floor Stand Kit
StandardcULus
Width62 in
Finish TypePolyester Powder
Nema Rating12
Class CodeP02
Freight Class Code06111001
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P035
UL ListedYes
MaterialCarbon Steel
BOX SIZE40.000x82.000x72.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725428557
Pallet Height44.500 in
Pallet Weight580.000 lb.
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorYes
