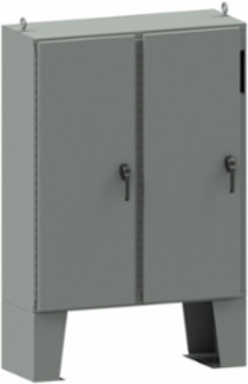

Wiegmann WA72X6112U N12 Two Door Floor-Mount Right Flanged Disconnect 72X61X12 Carbon Steel - Gray
- MPN: WA72X6112U
- UPC: 786725428601
- PPN: HBL-WA72X6112U
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N12 Two Door Floor-Mount Right Flanged Disconnect 72X61X12 Carbon Steel - Gray
Features
- Designed for indoor use in protecting components from dust, dirt, oil and water
- Punching in right flange (WAXU) or center post (WACPXU) to house the following disconnect operating handles with appropriate adaptor plate: Allen-Bradley Bulletin 1494V, ABB, Cutler-Hammer/Westinghouse type C361 and Type C371, General Electric Type STDA and Spectra Flex, I-T-E Max-Flex, and Square D Class Class9422 variable depth and cable mechanisms.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 72.130 in
- Number of Doors (Fixed)
- 2
- Color
- Ansi-61 Gray Textured
- Depth
- 12 in
- Height
- 72 in
- NEMA Rating
- 12
- Type
- Enclosure
- Weight
- 630 lb.
- Mounting Type
- 15 in High Floor Stand Kit
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DISC,UN,N12,2D,RF,72X61X12
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 3-Point Padlocking Handle
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 630.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
Actual Depth12.13 in
Actual Width61.75 in
ApplicationThe Wiegmann universal cutout is used in large freestand and floorstand enclosures.
Cubic Capacity53568 cu.in
FinishPolyester Powder
Mounting15 in High Floor Stand Kit
StandardcULus
Width62 in
Finish TypePolyester Powder
Nema Rating12
Class CodeP02
Freight Class Code06111001
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P035
UL ListedYes
MaterialCarbon Steel
BOX SIZE72.130x12.130x61.750 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725428601
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
