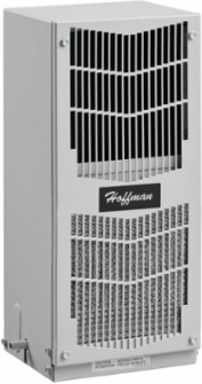

nVent Hoffman N160116G051 SpectraCool Narrow Indoor/Outdoor AC, 800BTU 115V, Brushed, SS304
- MPN: N160116G051
- UPC: 783510344436
- PPN: HOF-N160116G051
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SpectraCool Narrow Indoor/Outdoor ACs provide space-saving solution on low-depth cabinets. This SpectraCool Narrow Indoor/Outdoor AC, N160116G051 item is rated 800BTU 115V with material of SS304 finish Brushed.
Features
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
- Energy efficient rotary compressor on N36 and N43 models
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Nominal Capacity Watts | 235 |
| Corrosion Resistant | No |
| Number of Phases | 1 |
| Finish | Brushed #3 |
| Height (H) | 419 |
| Depth (D) | 160 |
| Ambient Temperature | -40 |
| Mounting | Side wall |
| Remote Access Control | No |
| Product Family | SpectraCool |
| Weight | 29.6 |
| Voltage Rating | 100/115 VAC |
| Nominal Capacity Btu/h | 800 |
|---|---|
| Refrigerant | R513A |
| Nominal Voltage | 115 |
| Material | Stainless Steel 304 |
| Thickness (T) | 1.21 |
| Width (W) | 191 |
| Operating Temperature | -40 |
| Max Current | 3.6 |
| Outdoor Installation | Yes |
| Protection Rating | NEMA Type 12 |
| NEMA Rating | 12 Indoor, dust-resistant |
| Sub Brand | SpectraCool |
