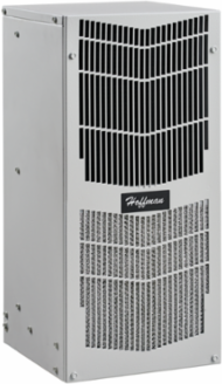

Nvent Hoffman N210226G800 SpectraCool Compact Advanced Corrosion Protection Lvl 2, 2000BTU 230V, Lt Gray, Steel
Nvent Hoffman N210226G800 SpectraCool Compact Advanced Corrosion Protection Lvl 2, 2000BTU 230V, Lt Gray, Steel
- MPN: N210226G800
- UPC: 783510357245
- PPN: HOF-N210226G800
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Narrow with Advanced Corrosion Protection Compact ACs utilize advanced coatings. This SpectraCool Compact Advanced Corrosion Protection Lvl 2, N210226G800 item is rated 2000BTU 230V with material Steel color Lt Gray.
Features
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
- Energy efficient rotary compressor on N36 and N43 models
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 586
- Corrosion Resistant
- Yes
- Number of Phases
- 1
- Finish
- Powder Coated
- Thickness (T)
- 1.21
- Width (W)
- 254
- Operating Temperature
- -40
- Max Current
- 3.5
- Outdoor Installation
- Yes
- Protection Rating
- NEMA Type 12
- Color Code
- RAL 7035
- Weight
- 46.7
Nominal Capacity Btu/h2,000
RefrigerantR513A
Nominal Voltage230
MaterialMild Steel
ColorLight Gray
Height (H)531
Depth (D)251
Ambient Temperature-40
MountingSide wall
Remote Access ControlNo
Product FamilySpectraCool
NEMA Rating12 Indoor, dust-resistant
