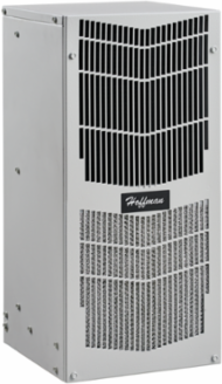

Nvent Hoffman N210246G102 SpectraCool Compact Advanced Corrosion Protection Lvl 1, 2000BTU 460V, Brushed, SS316
Nvent Hoffman N210246G102 SpectraCool Compact Advanced Corrosion Protection Lvl 1, 2000BTU 460V, Brushed, SS316
- MPN: N210246G102
- UPC: 783510357337
- PPN: HOF-N210246G102
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Narrow with Advanced Corrosion Protection Compact ACs utilize advanced coatings. This SpectraCool Compact Advanced Corrosion Protection Lvl 1, N210246G102 item is rated 2000BTU 460V with material of SS316 finish Brushed.
Features
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
- Energy efficient rotary compressor on N36 and N43 models
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 586
- Corrosion Resistant
- Yes
- Number of Phases
- 1
- Finish
- Brushed #4
- Height (H)
- 639
- Depth (D)
- 251
- Ambient Temperature
- -40
- Mounting
- Side wall
- Remote Access Control
- No
- Product Family
- SpectraCool
- Weight
- 46.7
Nominal Capacity Btu/h2,000
RefrigerantR513A
Nominal Voltage460
MaterialStainless Steel 316L
Thickness (T)1.21
Width (W)254
Operating Temperature-40
Max Current1.9
Outdoor InstallationYes
Protection RatingNEMA Type 12
NEMA Rating12 Indoor, dust-resistant
