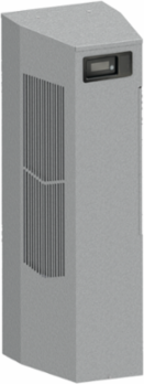

Nvent Hoffman N360626G360 SpectraCool Narrow AC 6000BTU 230V, 914H x 292W x 356D, Steel, Lt Gray
Nvent Hoffman N360626G360 SpectraCool Narrow AC 6000BTU 230V, 914H x 292W x 356D, Steel, Lt Gray
- MPN: N360626G360
- UPC: 783510357535
- PPN: HOF-N360626G360
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Narrow Advanced Corrosion Protection ACs utilize corrosion protection advanced coatings. This SpectraCool Narrow Advanced Corrosion Protection Lvl 1 RAC, N360626G360 item is rated 6000BTU 230V with material Steel color Lt Gray.
Features
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings.
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat.
- Narrow design accommodates 12-inch (300mm) deep cabinets
- Attractive industrial design with minimal use of visible fasteners
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor Air Conditioner models include digital display on ambient side
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Energy efficient reciprocating compressor on N28 models
- Energy efficient rotary compressor on N36 and N43 models
- Galvanized sheet-metal cover for rugged factory environments
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard models include: active condensate management with heater strip, power-off relay for door switch and other system requirements and malfunction switch
- Remote Access Control Units support up to 2 temperature sensors and 10 alarms. They support multiple communication protocols: SNMP, Modbus TCP, Ethernet/IP, and Profinet.
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 292
- Nominal Voltage
- 230
- Remote Access Control
- Yes
- Nominal Capacity Btu/h
- 6,000
- Operating Temperature
- -40
- Protection Rating
- NEMA Type 4X
- Material
- Mild Steel
- Color
- Light Gray
- Thickness (T)
- 1.21
- Weight
- 114
Height (H)914
Depth (D)356
RefrigerantR513A
Number of Phases1
Nominal Capacity Watts1,757
Max Current5
Product FamilySpectraCool
FinishPowder Coated
Color CodeRAL 7035
NEMA Rating4X Watertight, corrosion-resistant
