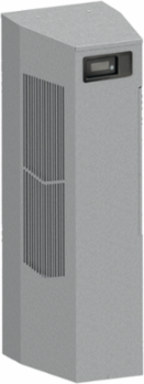

Nvent Hoffman N360846G060 SpectraCool Narrow Indoor/Outdoor AC with RAC, 8000 BTU 460V, Lt Gray, Steel
Nvent Hoffman N360846G060 SpectraCool Narrow Indoor/Outdoor AC with RAC, 8000 BTU 460V, Lt Gray, Steel
- MPN: N360846G060
- UPC: 783510239213
- PPN: HOF-N360846G060
- UNSPSC: 40101701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Narrow Indoor/Outdoor ACs provide space-saving solution on low-depth cabinets. This SpectraCool Narrow Indoor/Outdoor AC with RAC, N360846G060 item is rated 8000 BTU 460V with material of Steel color Lt Gray.
Features
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
- Energy efficient rotary compressor on N36 and N43 models
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 2,401
- Corrosion Resistant
- No
- Number of Phases
- 3
- Finish
- Powder Coated
- Height (H)
- 914
- Depth (D)
- 356
- Ambient Temperature
- -40
- Mounting
- Side wall
- Remote Access Control
- Yes
- Product Family
- SpectraCool
- NEMA Rating
- 4 Watertight
- Sub Brand
- SpectraCool
Nominal Capacity Btu/h8,500
RefrigerantR513A
Nominal Voltage460
MaterialMild Steel
Thickness (T)1.21
Width (W)292
Operating Temperature-40
Max Current3
Outdoor InstallationYes
Protection RatingNEMA Type 4
Color CodeRAL 7035
Weight114
ColorLt Gray
