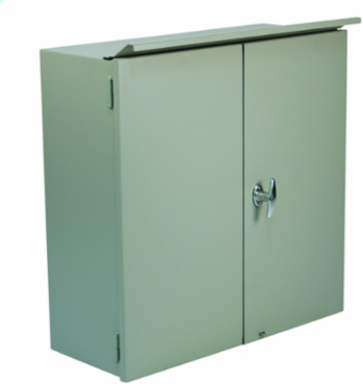

Wiegmann CTDD302410 N3R Double Door Enclosure 30 Inch x 24 Inch x 10 Inch Carbon Steel, Gray
- MPN: CTDD302410
- UPC: 786725853939
- PPN: HBL-CTDD302410
- UNSPSC: 39121324
CAD
$1796.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N3R CT Cabinet, 30X24X10, Carbon Steel - Gray
Features
- Continuously welded seams, ground smooth with weep hole
- Equipped with a drip shield
- Lift-off hinges and gasketed doors
- Features a non-locking quarter-turn latch
- Includes meter seal provisions
- Mounting holes on the back for easy installation
- Comes with studs for optional wood back panel support
- Finished with ANSI 61 polyester powder coating inside and out
- This CT Cabinet features a durable ANSI 61 polyester powder-coated finish inside and out, ensuring superior protection and longevity in harsh environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Application
- Enclosures are designed as a housing for current and voltage transformers, recorders, meters, junction, service box, relay, and/or for terminal instrumentation.
- Cover Type
- Hinged Cover
- Depth
- 10 in
- Height
- 24 in
- NEMA Rating
- 3R
- Standard
- cULus
- Width
- 30 in
- Finish Type
- Smooth
- Mounting Type
- Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- CT,DD,CS,30X24X10
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 24.000x10.000x30.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725853939
- NAICS Code
- 3359326101
Number of Doors (Fixed)2
ColorAnsi-61 Gray Smooth
Cubic Capacity7200 cu.in
FinishSmooth
MountingMounting Holes
Special FeaturesThis CT Cabinet features a durable ANSI 61 polyester powder-coated finish inside and out, ensuring superior protection and longevity in harsh environments.
TypeEnclosure
Weight73 lb.
KnockoutsNo
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P001
ConstructionSeam and Tack Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack73.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
