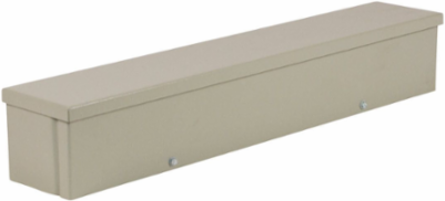

Wiegmann RSCG040424 N3R Gutter 4X4X24 Carbon Steel - Gray
Wiegmann RSCG040424 N3R Gutter 4X4X24 Carbon Steel - Gray
- MPN: RSCG040424
- UPC: 786725408108
- PPN: HBL-RSCG040424
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$207.98/ EA
Description
N3R Gutter 4X4X24 Carbon Steel - Gray
Features
- Trough and cover fabricated from 16 gauge carbon steel
- Drip shield top and smooth seamless sides, front and back, prevent rain, snow and sleet from entering the enclosure
- Embossed mounting holes are conveniently located on the back
- A slip-on removable cover is securely fastened with screws located along the bottom edge
- Knockouts are provided on bottom of enclosure
Specifications
Specifications
- Actual Depth
- 24.13 in
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 5.200 in
- Cable Entry
- Knock Outs
- Cubic Capacity
- 384 cu.in
- Finish
- Polyester Powder
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Width
- 4 in
- Finish Type
- Polyester Powder
- Mounting Type
- Embossed Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- RSC,GUTTER,NEMA3R,CS,4X4X24
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 5.100x24.700x5.200 (in)
- Carton - Number of Sub Packs
- 4
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725408108
- Pallet Height
- 40.200 in
- Pallet Weight
- 608.220 lb.
Actual Height4.060 in
Country of OriginUS
ApplicationDesigned to protect wiring in outdoor installations against rain, sleet and snow, or indoors against dripping water.
ColorAnsi-61 Gray Smooth
Depth24 in
Height4 in
NEMA Rating3R
TypeGutter
Weight9 lb.
KnockoutsYes
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P003
ConstructionSpot and Tack Welded
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units4 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorYes
