Description

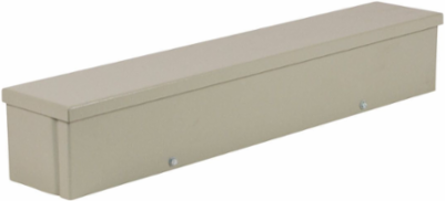

N3R Gutter 4X4X36 Carbon Steel - Gray
Features
- Trough and cover fabricated from 16 gauge carbon steel
- Drip shield top and smooth seamless sides, front and back, prevent rain, snow and sleet from entering the enclosure
- Embossed mounting holes are conveniently located on the back
- A slip-on removable cover is securely fastened with screws located along the bottom edge
- Knockouts are provided on bottom of enclosure
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Actual Height
- 4.060 in
- Application
- Designed to protect wiring in outdoor installations against rain, sleet and snow, or indoors against dripping water.
- Color
- Ansi-61 Gray Smooth
- Depth
- 36 in
- Height
- 4 in
- NEMA Rating
- 3R
- Type
- Gutter
- Weight
- 13.25 lb.
- Knockouts
- Yes
- Nema Rating
- 3R
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P003
- Construction
- Spot and Tack Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 13.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Depth36.13 in
Actual Width4.060 in
Cable EntryKnock Outs
Cubic Capacity576 cu.in
FinishPolyester Powder
MountingEmbossed Mounting Holes
StandardcULus
Width4 in
Finish TypePolyester Powder
Mounting TypeEmbossed Mounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceRSC,GUTTER,NEMA3R.CS,4X4X36
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE5.000x36.000x5.000 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00786725408153
Pallet Height39.500 in
Pallet Weight927.000 lb.
NAICS Code3359323106
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL, CSA
