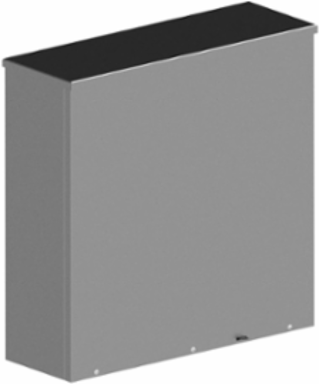

Wiegmann RSC121210G N3R Screw-Cover Wall-Mount 12X12X10 Carbon Steel - Galvanized
Wiegmann RSC121210G N3R Screw-Cover Wall-Mount 12X12X10 Carbon Steel - Galvanized
- MPN: RSC121210G
- UPC: 786725403226
- PPN: HBL-RSC121210G
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$236.35/ EA
Description
N3R Screw-Cover Wall-Mount 12X12X10 Carbon Steel - Galvanized
Features
- Bodies and doors fabricated from 16 gauge pre-galvanized steel
- Drip shield top and smooth seamless sides and front
- A slip-on reversible cover is securely fastened with screws located along bottom edge
- No gasketing is required
- Hasp for padlocking or meter seal is provided
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 13.000 in
- Cover Type
- Screw Cover
- Depth
- 10 in
- Height
- 12 in
- NEMA Rating
- 3R
- Type
- Enclosure
- Weight
- 16 lb.
- Knockouts
- No
- Nema Rating
- 3R
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P017
- Construction
- Tack Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 16.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
Country of OriginUS
ApplicationDesigned for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water.
Cubic Capacity1440 cu.in
FinishGalvanized
MountingMounting Holes
StandardcULus
Width12 in
Finish TypeGalvanized
Mounting TypeMounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceRSC,RAINPROOF,N3R,GLV,12X12X10
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE12.000x10.000x12.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725403226
Pallet Weight0.000 lb.
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorNo
