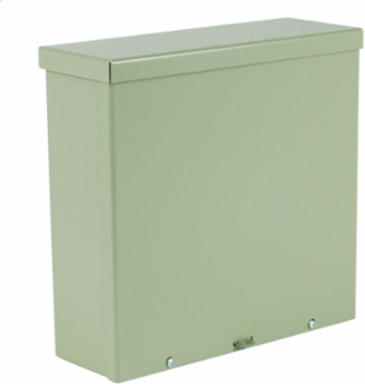

Wiegmann RSC121206NK N3R Screw-Cover Wall-Mount No Knockouts 12X12X6 Carbon Steel - Gray
Wiegmann RSC121206NK N3R Screw-Cover Wall-Mount No Knockouts 12X12X6 Carbon Steel - Gray
- MPN: RSC121206NK
- UPC: 786725860876
- PPN: HBL-RSC121206NK
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$186.86/ EA
Description
N3R Screw-Cover Wall-Mount No Knockouts 12X12X6 Carbon Steel - Gray
Features
- Bodies and doors fabricated from 16 gauge carbon steel
- Drop shiled top and smooth seamless sides and front
- A slip-on reversible cover is securely fastened with screws located along botoom edge
- No gasketing is required
- Hasp for padlocking or meter seal is provided
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 13.000 in
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 864 cu.in
- Finish
- Textured
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Width
- 12 in
- Finish Type
- Textured
- Material type
- Carbon Steel
- Nema Rating
- 3R
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- No
- Sub Class Code
- P01P017
- Construction
- Spot Welded
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 3
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginMX
ApplicationDesigned for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water.
Cover TypeScrew Cover
Depth6 in
Height12 in
NEMA Rating3R
TypeEnclosure
Weight13 lb.
KnockoutsNo
Mounting TypeEmbossed Mounting Holes
ARRA CompliantContact Manufacturer
Description - InvoiceRSC,RAINPROOF,N3R,CS,12X12X6
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE7.500x13.000x13.000 (in)
Carton - Number of Sub Packs3
Carton - SCC-14 Next Lower Level Sub Pack00786725860876
Pallet Height33.000 in
Pallet Weight505.000 lb.
Certifications
- Certified Listed
- cULus
- Listings
- UL, CSA
EU RoHS IndicatorYes
