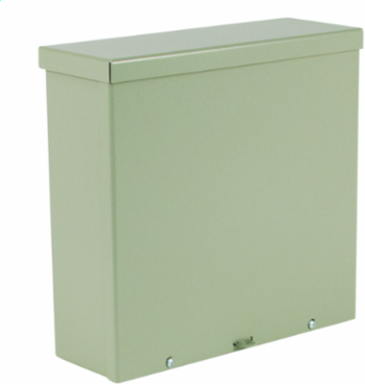

Wiegmann RSC121506NK N3R Screw-Cover Wall-Mount No Knockouts 12X15X6 Carbon Steel - Gray
- MPN: RSC121506NK
- UPC: 786725865307
- PPN: HBL-RSC121506NK
- UNSPSC: 39121324
CAD
$226.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N3R Screw-Cover Wall-Mount No Knockouts 12X15X6 Carbon Steel - Gray
Features
- Bodies and doors fabricated from 16 gauge carbon steel
- Drop shiled top and smooth seamless sides and front
- A slip-on reversible cover is securely fastened with screws located along botoom edge
- No gasketing is required
- Hasp for padlocking or meter seal is provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Color
- Ansi-61 Gray Textured
- Cubic Capacity
- 1080 cu.in
- Finish
- Textured
- Mounting
- Embossed Mounting Holes
- Standard
- cULus
- Width
- 12 in
- Finish Type
- Textured
- Mounting Type
- Embossed Mounting Holes
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- RSC,RAINPROOF,N3R,CS,12X15X6,NK'S
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Material
- Carbon Steel
- BOX SIZE
- 8.250x16.950x14.200 (in)
- Carton - Total Units
- 3 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
ApplicationDesigned for use as wiring boxes and junction boxes. Provide protection in outdoor applications against rain, sleet, and snow, or indoors against dripping water.
Cover TypeScrew Cover
Depth6 in
Height15 in
NEMA Rating3R
TypeEnclosure
Weight25 lb.
KnockoutsNo
Nema Rating3R
Class CodeP01
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP01P017
ConstructionSpot Welded
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725865307
Pallet Height37.500 in
Pallet Weight439.560 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus
ListingsUL, CSA
