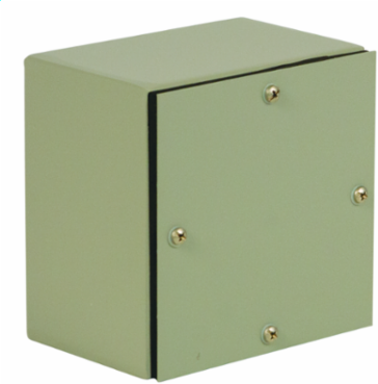

Wiegmann WA202008GSC N4 Gasketed Screw-Cover 20X20X8 Carbon Steel - Gray
Wiegmann WA202008GSC N4 Gasketed Screw-Cover 20X20X8 Carbon Steel - Gray
- MPN: WA202008GSC
- UPC: 786725310555
- PPN: HBL-WA202008GSC
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$723.89/ EA
Description
N4 Gasketed Screw-Cover 20X20X8 Carbon Steel - Gray
Features
- Bodies and covers fabricated from 14 gauge carbon steel
- Seams are continuously welded and ground smooth
- Cover contains closed cell oil resistant neoprene gasket
- Enclosure comes with stainless steel cover screws which thread into sealed wells to prevent liquid, dust, etc. from entering into the box through the screw holes
- Ground stud located in door
- No holes, knockout, or rear mounting holes
Specifications
Specifications
- Country of Origin
- Mexico
- Actual Height
- 11.250 in
- Application
- Designed for use as wiring box, junction box, pull box, and terminal box in many indoor or outdoor applications where dust or moisture is a problem.
- Cover Type
- Screw Cover
- Depth
- 11 in
- Height
- 11 in
- Standard
- cULus
- Width
- 20 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Nema Rating
- 4
- Class Code
- P01
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P01P006
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 46.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Depth11.25 in
Actual Width20.060 in
ColorAnsi-61 Gray Smooth
Cubic Capacity2420 cu.in
FinishSmooth
NEMA Rating4
TypeEnclosure
Weight46 lb.
Finish TypeSmooth
ARRA CompliantContact Manufacturer
Description - InvoiceN3/4, GASKETED SCREW COVER
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
UL ListedYes
MaterialCarbon Steel
BOX SIZE9.000x21.000x21.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725310555
Pallet Height49.500 in
Pallet Weight385.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus
ListingsUL
