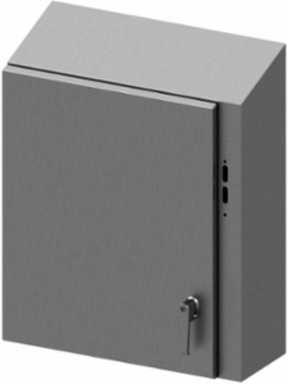

Wiegmann N412302608CSSSTD N412 Single Door Slope-Top Disconnect Ultimate 30X26X8 304 Stainless Steel
Wiegmann N412302608CSSSTD N412 Single Door Slope-Top Disconnect Ultimate 30X26X8 304 Stainless Steel
- MPN: N412302608CSSSTD
- UPC: 786725864638
- PPN: HBL-N412302608CSSSTD
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
N412 Single Door Slope-Top Disconnect Ultimate 30X26X8 304 Stainless Steel
Features
- 30X26X8 304 Stainless Steel
Specifications
Specifications
- Country of Origin
- Mexico
- Number of Doors (Fixed)
- 1
- Cable Entry
- NO
- Cover Type
- Door
- Depth
- 8 in
- Height
- 30 in
- NEMA Rating
- 1,3R,12,13,4,4X
- Sub Brand
- Ultimate Series
- Width
- 26 in
- Finish Type
- Smooth Grained
- Mounting Type
- Mounting Holes
- Number of Holes
- 4
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P03P057
- UL Listed
- Yes
- Material
- Stainless Steel
- BOX SIZE
- 30.000x8.000x26.000 (in)
Industry Standard(s)cULus;IEC 60529
ApplicationHubbell Wiegmann N412CSSSTD Ultimate Series Disconnects are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Stream
ColorBrushes Stainless Steel
Cubic Capacity6240 cu.in
FinishSmooth Grained
MountingMounting Holes
StandardcULus;IEC 60529
TypeEnclosure
Weight61 lb.
KnockoutsNo
Nema Rating1,3R,12,13,4,4X
ARRA CompliantContact Manufacturer
Description - InvoiceN412,SD,SS,ULTIMATE,SLP TOP,DISC,30X26X8
Harmonization Code7326908688
Lead Time15 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type2-Point
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725864638
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorNo
