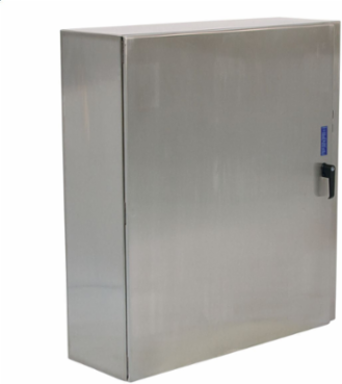

Wiegmann N412603812CDSS N412 Single Door Flanged Disconnect Ultimate Series 60X38X12 304 Stainless Steel
- MPN: N412603812CDSS
- UPC: 786725862801
- PPN: HBL-N412603812CDSS
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N412 Single Door Flanged Disconnect Ultimate Series 60X38X12 304 Stainless Steel
Features
- Bodies and doors are fabricated from 304 stainless steel
- Seams are continuously welded and ground smooth
- Doors are sealed with a poured in place gasket
- Mounting holes are located in the back of the enclosure
- Latching system interlocks with the disconnect handle for added safety
- Bodies and doors fabricated from 14 gauge 304 stainless steel. Continuously plasma welded seams. Increased tub opening for better access. Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional sub panel. Door latching system installed on door with a slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 2pt latch system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Number of Doors (Fixed)
- 1
- Cable Entry
- NO
- Cover Type
- Door
- Depth
- 12 in
- Height
- 60 in
- NEMA Rating
- 1,3R,12,13,4,4X
- Standard
- cULus;IEC 60529
- Type
- Enclosure
- Weight
- 220 lb.
- Finish Type
- Smooth Grained
- Mounting Type
- Mounting Holes
- Number of Holes
- 4
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P03P057
- UL Listed
- Yes
- Material
- Stainless Steel
- BOX SIZE
- 60.000x12.000x38.000 (in)
- Carton - Total Units
- 1 EA
Industry Standard(s)cULus;IEC 60529
ApplicationThese general purpose disconnect enclosures accept major brand disconnect switches and circuit breakers, available with or without Wiegmann-supplied defeater door handle and handle hardware.
ColorBrushes Stainless Steel
Cubic Capacity27360 cu.in
FinishSmooth Grained
MountingMounting Holes
Special FeaturesBodies and doors fabricated from 14 gauge 304 stainless steel. Continuously plasma welded seams. Increased tub opening for better access. Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional sub panel. Door latching system installed on door with a slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 2pt latch system.
Sub BrandUltimate Series
Width38 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
KnockoutsNo
Nema Rating1,3R,12,13,4,4X
ARRA CompliantContact Manufacturer
Description - InvoiceN412,WM SS DISC. 60X38X12W/HNDL.ULTIMATE
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type3-Point
ConstructionContinuously Welded Seams
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725862801
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
