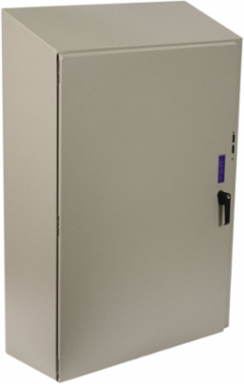

Wiegmann N412483812CSTD N412 Single Door Slope-Top Disconnect Ultimate Series 48X38X12 Carbon Steel-Gray
Wiegmann N412483812CSTD N412 Single Door Slope-Top Disconnect Ultimate Series 48X38X12 Carbon Steel-Gray
- MPN: N412483812CSTD
- UPC: 786725864607
- PPN: HBL-N412483812CSTD
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3326.54/ EA
Description
N412 Single Door Slope-Top Disconnect Ultimate Series 48X38X12 Carbon Steel-Gray
Features
- Bodies and doors are fabricated from carbon steel
- Seams are continuously welded and ground smooth
- Doors are sealed with a poured in place gasket
- Mounting holes are located in the back of the enclosure
- Latching system interlocks with the disconnect handle for added safety
- Bodies and doors fabricated from 14 gauge steel. Continuously plasma welded seams. Increased tub opening for better access. 20 degree sloped top. Sloped "Top tub flange". Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. 1/4-turn semi-flush oil tight latches are supplied to hold door securely closed. Print pocket is provided. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional back panel (the Ultimate back panels have increased in size to accommodate larger foot-print installations). Ultimate Accessory Driven. Door handle and latching hardware are provided. Door latching system installed on door with slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 3pt latch system.
Specifications
Specifications
- Buy American Compliant
- Contact Manufacturer
- Each - Width
- 38.000 in
- Number of Doors (Fixed)
- 1
- Cable Entry
- NO
- Cover Type
- Door
- Depth
- 12 in
- Height
- 48 in
- NEMA Rating
- 1,3R, 12, 13, 4
- Standard
- cULus;IEC 60529
- Type
- Enclosure
- Weight
- 140 lb.
- Knockouts
- No
- Nema Rating
- 1,3R, 12, 13, 4
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N412,SD,ULTIMATE,SLOPE TOP,DISC,48X38X12
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 3-Point
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725864607
Country of OriginUS
Industry Standard(s)cULus;IEC 60529
ApplicationHubbell Wiegmann N412CSTD Ultimate Series Disconnects are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamli
ColorANSI-61 Gray, Textured
Cubic Capacity21888 cu.in
FinishPolyester Powder
MountingMounting Holes
Special FeaturesBodies and doors fabricated from 14 gauge steel. Continuously plasma welded seams. Increased tub opening for better access. 20 degree sloped top. Sloped "Top tub flange". Concealed hinges. Easy to remove doors are interchangeable. Grounding provisions included. 1/4-turn semi-flush oil tight latches are supplied to hold door securely closed. Print pocket is provided. Doors are sealed with poured-in-place polyurethane gasket. Mounting holes in rear of enclosure. Studs for mounting optional back panel (the Ultimate back panels have increased in size to accommodate larger foot-print installations). Ultimate Accessory Driven. Door handle and latching hardware are provided. Door latching system installed on door with slotted insert defeater mechanism to open. Latching system interlocks with the disconnect handle for added safety. 3pt latch system.
Sub BrandUltimate Series
Width38 in
Finish TypePolyester Powder
Mounting TypeMounting Holes
Number of Holes4
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P038
UL ListedYes
MaterialCarbon Steel
BOX SIZE48.000x12.000x38.000 (in)
Certifications
- CSA Approved
- NO
- ETL
- NO
- EU RoHS Indicator
- Yes
cULusYES
Certified ListedcULus;IEC
ListingsUL, CSA
