Wiegmann N412202008CSSST N412 Single Door Slope-Top Ultimate 20X20X8 304 Stainless Steel
- MPN: N412202008CSSST
- UPC: 786725864157
- PPN: HBL-N412202008CSSST
- UNSPSC: 39121324
CAD
$3581.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

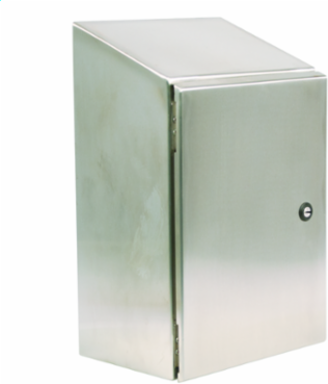

N412 Single Door Slope-Top Ultimate 20X20X8 304 Stainless Steel
Features
- 20X20X8 304 Stainless Steel
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Width
- 20.06 in
- Number of Doors (Fixed)
- 1
- Cable Entry
- NO
- Cover Type
- Door
- Depth
- 8 in
- Height
- 20 in
- NEMA Rating
- 1,3R,12,13,4,4X
- Sub Brand
- Ultimate Series
- Width
- 20 in
- Finish Type
- Smooth Grained Stainless
- Mounting Type
- Mounting Holes
- Number of Holes
- 4
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P03P057
- UL Listed
- Yes
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725864157
- Pallet Height
- 45.900 in
- Pallet Weight
- 314.440 lb.
- NAICS Code
- 3359326101
Actual Depth9.75 in
Industry Standard(s)cULus;IEC 60529
ApplicationHubbell Wiegmann N412CSSST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamli
ColorBrushes Stainless Steel
Cubic Capacity3200 cu.in
FinishSmooth Grained Stainless
MountingMounting Holes
StandardcULus;IEC 60529
TypeEnclosure
Weight38 lb.
KnockoutsNo
Nema Rating1,3R,12,13,4,4X
ARRA CompliantContact Manufacturer
Description - InvoiceN412,SD,ULTIMATE,SLOPE TOP,SS,20X20X8
Harmonization Code7326908688
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches Type1/4 Turn
ConstructionContinuously Welded Seams
SeriesN412-CSSST Series
BOX SIZE10.350x27.700x21.200 (in)
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
