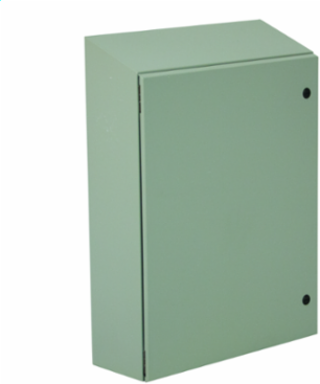

Wiegmann N412303008CST N412 Single Door Slope-Top Ultimate 30X30X8 Carbon Steel - Gray
- MPN: N412303008CST
- UPC: 786725864447
- PPN: HBL-N412303008CST
- UNSPSC: 39121324
CAD
$1541.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N412 Single Door Slope-Top Ultimate 30X30X8 Carbon Steel - Gray
Features
- 30X30X8 Carbon Steel - Gray
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 30 in
- Industry Standard(s)
- cULus;IEC 60529
- Application
- Hubbell Wiegmann N412CST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamline
- Color
- ANSI-61 Gray, Textured
- Cubic Capacity
- 7200 cu.in
- Finish
- Smooth
- Mounting
- Mounting Holes
- Standard
- cULus;IEC 60529
- Type
- Enclosure
- Weight
- 66.5 lb.
- Knockouts
- No
- Nema Rating
- 1,3R, 12, 13, 4
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N412,SD,ULTIMATE,SLOPE TOP,30X30X8
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 1/4 Turn
- Construction
- Continuously Welded Seams
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725864447
- NAICS Code
- 3359326101
Actual Depth9.75 in
Actual Width30.06 in
Number of Doors (Fixed)1
Cable EntryNO
Cover TypeDoor
Depth8 in
Height30 in
NEMA Rating1,3R, 12, 13, 4
Sub BrandUltimate Series
Width30 in
Finish TypeSmooth
Mounting TypeMounting Holes
Number of Holes4
Class CodeP02
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP02P038
UL ListedYes
MaterialCarbon Steel
BOX SIZE9.750x38.500x30.060 (in)
Pallet Weight0.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
