Wiegmann N412363612CSSST N412 Single Door Slope-Top Ultimate 36X36X12 304 Stainless Steel
- MPN: N412363612CSSST
- UPC: 786725864263
- PPN: HBL-N412363612CSSST
- UNSPSC: 39121324
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

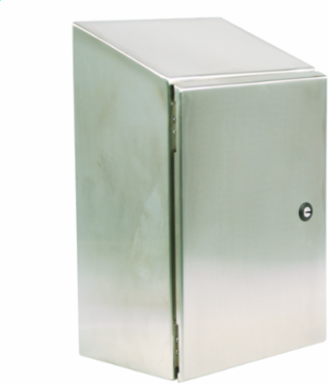

N412 Single Door Slope-Top Ultimate 36X36X12 304 Stainless Steel
Features
- 36X36X12 304 Stainless Steel
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 36 in
- Number of Doors (Fixed)
- 1
- Cable Entry
- NO
- Cover Type
- Door
- Depth
- 12 in
- Height
- 36 in
- NEMA Rating
- 1,3R,12,13,4,4X
- Sub Brand
- Ultimate Series
- Width
- 36 in
- Finish Type
- Smooth Grained Stainless
- Material type
- 304 Stainless Steel
- Nema Rating
- 1,3R,12,13,4,4X
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N412,SD,ULTIMATE,SLOPE TOP,SS,36X36X12
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- 1/4 Turn
- Construction
- Continuously Welded Seams
- Series
- N412-CSSST Series
- BOX SIZE
- 13.750x45.000x36.000 (in)
- Carton - Total Units
- 1 EA
- NAICS Code
- 3359326101
Actual Depth13.75 in
Industry Standard(s)cULus;IEC 60529
ApplicationHubbell Wiegmann N412CSSST ULTIMATE Series Enclosures are designed to house and protect electrical and electronic components from harsh, dirty environments. For use in installations where dirt, dust, oil, water, or other contaminants are present. Streamli
ColorBrushes Stainless Steel
Cubic Capacity15552 cu.in
FinishSmooth Grained Stainless
MountingMounting Holes
StandardcULus;IEC 60529
TypeEnclosure
Weight106 lb.
KnockoutsNo
Mounting TypeMounting Holes
Number of Holes4
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P057
UL ListedYes
MaterialStainless Steel
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725864263
Pallet Weight0.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
- cULus
- YES
- Certified Listed
- cULus;IEC
- Listings
- UL, CSA
CSA ApprovedNO
ETLNO
EU RoHS IndicatorYes
