Wiegmann BN4060604CHSSA N4X JIC Continuous Hinge 6X6X4 316 Stainless Steel
- MPN: BN4060604CHSSA
- UPC: 786725700004
- PPN: HBL-BN4060604CHSSA
- UNSPSC: 39121324
CAD
$903.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

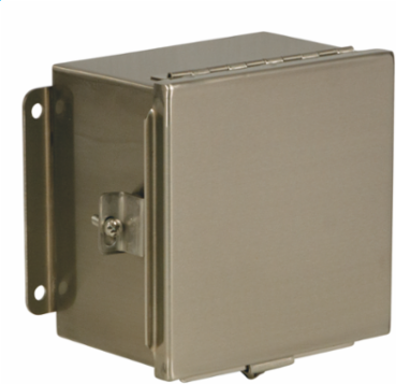

N4X JIC Continuous Hinge 6X6X4 316 Stainless Steel
Features
- Provides unmatched protection for housing electrical components in highly corrosive environments
- This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids or contaminates.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 4.250 in
- Number of Doors (Fixed)
- 1
- Cover Type
- Hinged Cover
- Depth
- 8 in
- Mounting
- External Mounting Feet
- Standard
- cULus;IEC
- Width
- 7 in
- Knockouts
- No
- Mounting Type
- External Mounting Feet
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- NEMA,4X,SS,316,CH,6X6X4
- Harmonization Code
- 7326908688
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Series
- BN4-CHSSA Series
- BOX SIZE
- 5.500x8.500x8.000 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725700004
- Pallet Height
- 48.500 in
- Pallet Weight
- 1045.000 lb.
- NAICS Code
- 3359326101
Actual Depth7.500 in
Actual Width7.130 in
ApplicationProvides unmatched protection for housing electrical components in highly corrosive environments. This enclosure is used in indoor and outdoor settings that are frequently wet or have constant exposure to water, other liquids, or contaminants.
Cubic Capacity224 cu.in
Height4 in
NEMA Rating4X
TypeEnclosure
Weight4 lb.
Material type316 Stainless Steel
Nema Rating4X
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P052
UL ListedYes
MaterialStainless Steel
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- Yes
Certified ListedcULus;IEC
ListingsUL, CSA
