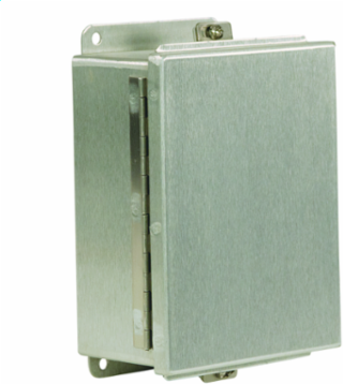

Wiegmann BN4080603CHAL N4X JIC Continuous Hinge 8X6X3.5 Aluminum
- MPN: BN4080603CHAL
- UPC: 786725376766
- PPN: HBL-BN4080603CHAL
- UNSPSC: 39121324
CAD
$550.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
N4X JIC Continuous Hinge 8X6X3.5 Aluminum
Features
- Designed as an instrument housing or junction box for electrical, electronic or pneumatic components
- It is ideal for applications where a lightweight, corrosion resistant enclosure is required.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Actual Width
- 6.500 in
- Application
- Designed as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required.
- Cubic Capacity
- 252 cu.in
- Height
- 4 in
- NEMA Rating
- 4X
- Type
- Enclosure
- Weight
- 2 lb.
- Knockouts
- No
- Nema Rating
- 4X
- Class Code
- P03
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P03P058
- UL Listed
- Yes
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Depth8.500 in
Number of Doors (Fixed)1
Cover TypeHinged Cover
Depth9 in
MountingExternal Mounting Plates
StandardcULus;IEC
Width7 in
Engineering Drawing 3 Display TextMOD Center Drawings Instructions
Mounting TypeExternal Mounting Plates
ARRA CompliantContact Manufacturer
Description - InvoiceNEMA 4X,AL,JIC,CH,8X6X3.5
Harmonization Code7616995190
Lead Time21 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
Latches TypeClamps
ConstructionContinuously Welded Seams
SeriesBN4-CHAL Series
BOX SIZE4.700x10.500x8.250 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00786725376766
Pallet Height46.800 in
Pallet Weight379.080 lb.
NAICS Code3359326101
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus;IEC
ListingsUL, CSA
