Wiegmann BN4161406CHAL N4X JIC Continuous Hinge 16X14X6 Aluminum
- MPN: BN4161406CHAL
- UPC: 786725335046
- PPN: HBL-BN4161406CHAL
- UNSPSC: 39121324
CAD
$1085.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

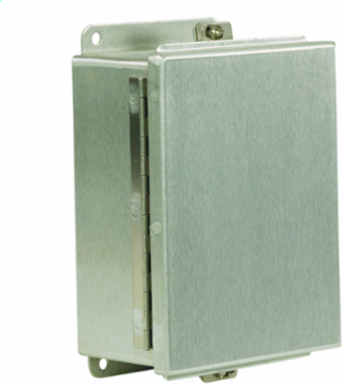

N4X JIC Continuous Hinge 16X14X6 Aluminum
Features
- Designed as an instrument housing or junction box for electrical, electronic or pneumatic components
- It is ideal for applications where a lightweight, corrosion resistant enclosure is required.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Actual Height
- 6.500 in
- Number of Doors (Fixed)
- 1
- Cover Type
- Hinged Cover
- Depth
- 17 in
- Mounting
- External Mounting Plates
- Standard
- cULus;IEC
- Width
- 15 in
- Engineering Drawing 3 Display Text
- MOD Center Drawings Instructions
- Mounting Type
- External Mounting Plates
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- N4,JIC,ALUM,CONT,HNGE 16X14X6
- Harmonization Code
- 7616995190
- Lead Time
- 21 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Latches Type
- Clamps
- Construction
- Continuously Welded Seams
- Series
- BN4-CHAL Series
- BOX SIZE
- 7.800x18.350x16.450 (in)
- Carton - Number of Sub Packs
- 1
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725335046
- Pallet Height
- 43.500 in
- Pallet Weight
- 212.000 lb.
- NAICS Code
- 3359326101
Actual Depth16.5 in
Actual Width14.500 in
ApplicationDesigned as an instrument housing or junction box for electrical, electronic, or pneumatic components. It is ideal for applications where a lightweight, corrosion resistant enclosure is required.
Cubic Capacity1785 cu.in
Height7 in
NEMA Rating4X
TypeEnclosure
Weight9 lb.
KnockoutsNo
Nema Rating4X
Class CodeP03
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP03P058
UL ListedYes
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units1 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
- EU RoHS Indicator
- No
Certified ListedcULus;IEC
ListingsUL, CSA
