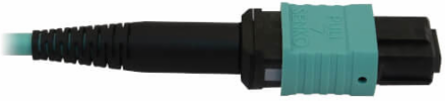

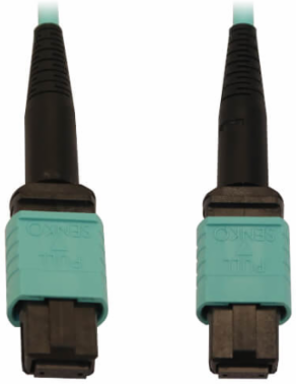

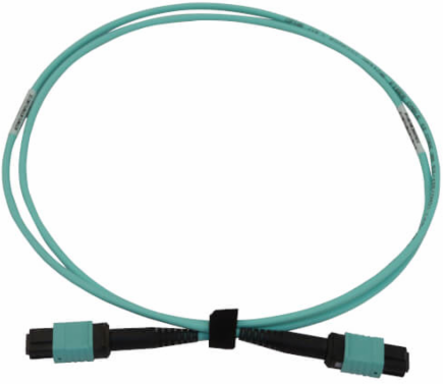

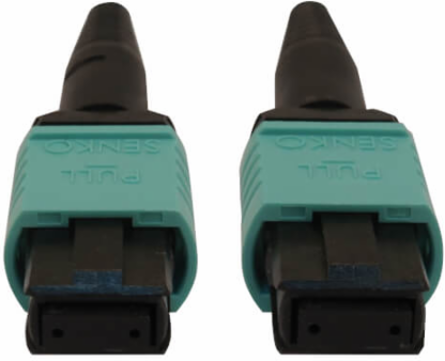

Tripp Lite N844B01M12P MTP/MPO Fiber Optic Cable, 12 Fiber, Multimode OM3 50/125, F/F, LSZH, Aqua, 1 m (3.3 ft)
- MPN: N844B01M12P
- UPC: 037332272911
- PPN: TRP-N844B-01M-12-P
CAD
$192.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (12F MTP/MPO-PC F/F), LSZH, Aqua, 1 m (3.3 ft.)
Documentation & Downloads
Specifications
Performance
| Network Compatibility | 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Attenuation @ 850nm | 3.5 dB/km |
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Wavelength | 1300 nm; 850 nm |
|---|---|
| Attenuation @ 1300nm | 1.5 dB/km |
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Storage Humidity Range | 5% to 85% RH, Non-Condensing |
Dimensions
| Cable Length | 1 m (3.3 ft) |
|---|---|
| Core Diameter | 50.0 |
| Primary Coating Diameter | 245.0 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
| Side A - Connector | 12F MPO (Female) |
| Number of Fibers | 12 |
|---|---|
| Clad Diameter | 125.0 |
| Cable Outer Diameter | 3.0 mm |
| Optical Port | MPO/MTP |
| Side B - Connector | 12F MPO (Female) |
Material
| Technology | Multimode |
|---|---|
| Cable Jacket Material | LSZH |
| Cable Jacket Color | Aqua |
| Endface Polish | PC |
| Polarity | Type B (cross) |
|---|---|
| Cable Jacket Rating | OFNR |
| Connector Color | Black |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
