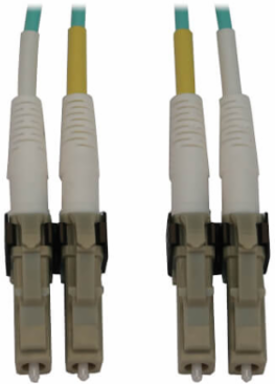

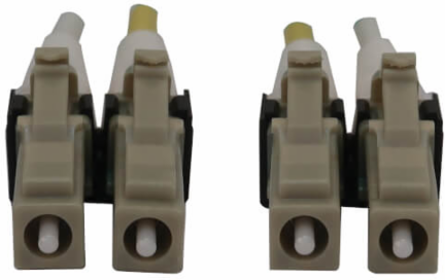

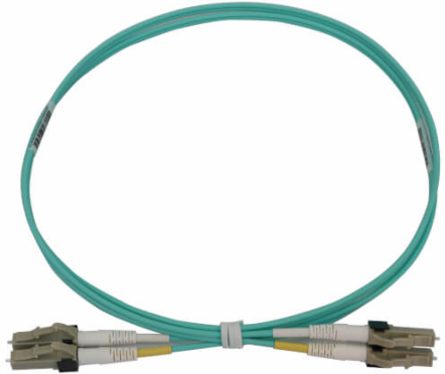

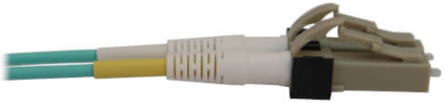

Tripp Lite N820X01M Fiber Optic Cable, 400G Multimode OM3, Duplex LC-PC, LSZH, Aqua, 1 m
- MPN: N820X01M
- UPC: 037332271570
- PPN: TRP-N820X-01M
CAD
$24.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
400G Multimode 50/125 OM3 Switchable Fiber Optic Cable (Duplex LC-PC M/M), LSZH, Aqua, 1 m (3.3 ft.)
Documentation & Downloads
Specifications
Material
- Technology
- Multimode
- Cable Jacket Color
- Aqua
- Cable Jacket Rating
- OFNR
Cable Jacket MaterialLSZH
Connector ColorBeige
Dimensions
- Cable Length
- 1 m (3.3 ft)
- Side A - Connector 1
- LC Duplex (Male)
- Optical Port
- LC
- Switchable Polarity
- Yes
- Clad Diameter
- 125.0
- Primary Coating Diameter
- 600.0
Number of Fibers2
Side B - Connector 1LC Duplex (Male)
Endface PolishPC
Cable Outer Diameter2 mm x 4.1 mm
Core Diameter50.0
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Performance
- Network Compatibility
- 10 Gbps; 25 Gbps; 40 Gbps; 100 Gbps; 400 Gbps
- Attenuation @ 850NM
- 3.5 dB/km
- Operating Temperature Range
- -4° to 140°F (-20° to 60°C)
- Storage Temperature Range
- -4° to 140°F (-20° to 60°C)
Wavelength1300nm; 850nm
Attenuation @ 1300NM1.5 dB/km
Operating Humidity Range5% to 85% RH, Non-Condensing
Storage Humidity Range5% to 85% RH, Non-Condensing
Reference
- Product Warranty Period
- Lifetime limited warranty
