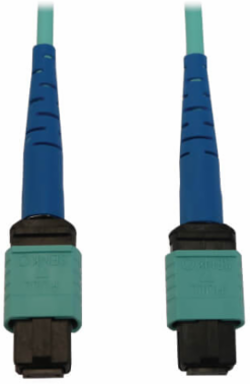

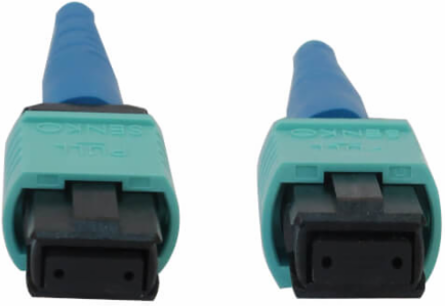

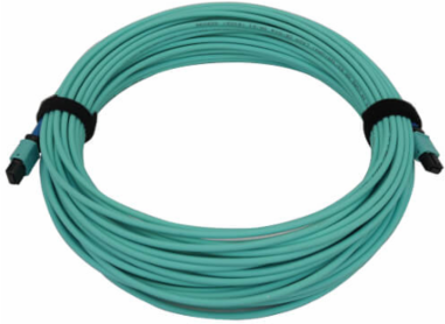

Tripp Lite N846B20M24P Fiber Optic Cable, 40/100/400G Multimode OM3, 24F MTP/MPO-PC F/F, LSZH, Aqua, 20 m
- MPN: N846B20M24P
- UPC: 037332271747
- PPN: TRP-N846B-20M-24-P
CAD
$852.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (24F MTP/MPO-PC F/F), LSZH, Aqua, 20 m (65.6 ft.)
Documentation & Downloads
Specifications
Dimensions
- Cable Length
- 20 m (65.6 ft)
- Side A - Connector 1
- 24F MPO (Female)
- Optical Port
- MPO/MTP
- Clad Diameter
- 125.0
- Primary Coating Diameter
- 245.0
Number of Fibers24
Side B - Connector 124F MPO (Female)
Cable Outer Diameter3.0 mm
Core Diameter50.0
Minimum Bend Radius20 mm (Dynamic); 10 mm (Static)
Material
- Technology
- Multimode
- Polarity
- Type A (straight through)
- Connector Color
- Aqua; Black; Blue
- Cable Jacket Rating
- OFNR
Endface PolishPC
Cable Jacket ColorAqua
Cable Jacket MaterialLSZH
Performance
- Network Compatibility
- 40 Gbps; 100 Gbps; 400 Gbps
- Operating Temperature Range
- 14° to 140°F (-10° to 60°C)
- Operating Humidity Range
- 5% to 85% RH, Non-Condensing
- Attenuation @ 850NM
- 3.5 dB/km
Wavelength1300nm; 850nm
Storage Temperature Range14° to 140°F (-10° to 60°C)
Storage Humidity Range5% to 85% RH, Non-Condensing
Attenuation @ 1300NM1.5 dB/km
Reference
- Product Warranty Period
- Lifetime limited warranty
