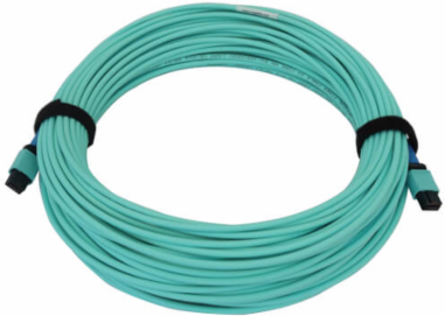

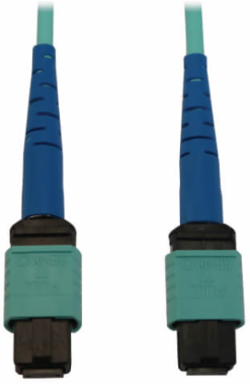

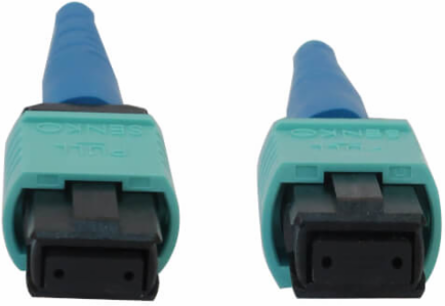

Tripp Lite N846B25M24P Fiber Optic Cable, 40/100/400G Multimode OM3, 24F MTP/MPO-PC F/F, LSZH, Aqua, 25 m
- MPN: N846B25M24P
- UPC: 037332271761
- PPN: TRP-N846B-25M-24-P
CAD
$972.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
40/100/400G Multimode 50/125 OM3 Fiber Optic Cable (24F MTP/MPO-PC F/F), LSZH, Aqua, 25 m (82 ft.)
Documentation & Downloads
Specifications
Material
| Technology | Multimode |
|---|---|
| Polarity | Type A (straight through) |
| Connector Color | Aqua; Black; Blue |
| Cable Jacket Rating | OFNR |
| Endface Polish | PC |
|---|---|
| Cable Jacket Color | Aqua |
| Cable Jacket Material | LSZH |
Dimensions
| Cable Length | 25 m (82 ft) |
|---|---|
| Side A - Connector 1 | 24F MPO (Female) |
| Optical Port | MPO/MTP |
| Clad Diameter | 125.0 |
| Primary Coating Diameter | 245.0 |
| Number of Fibers | 24 |
|---|---|
| Side B - Connector 1 | 24F MPO (Female) |
| Cable Outer Diameter | 3.0 mm |
| Core Diameter | 50.0 |
| Minimum Bend Radius | 20 mm (Dynamic); 10 mm (Static) |
Performance
| Network Compatibility | 40 Gbps; 100 Gbps; 400 Gbps |
|---|---|
| Operating Temperature Range | 14° to 140°F (-10° to 60°C) |
| Operating Humidity Range | 5% to 85% RH, Non-Condensing |
| Attenuation @ 850NM | 3.5 dB/km |
| Wavelength | 1300nm; 850nm |
|---|---|
| Storage Temperature Range | 14° to 140°F (-10° to 60°C) |
| Storage Humidity Range | 5% to 85% RH, Non-Condensing |
| Attenuation @ 1300NM | 1.5 dB/km |
Reference
| Product Warranty Period | Lifetime limited warranty |
|---|
