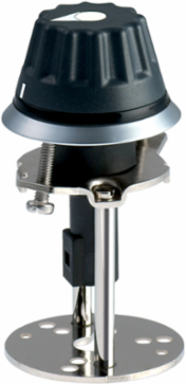

Schmersal 101169823 Rotary Drive for Potentiometer, 44.5 mm Diameter, IP67/IP69K, 50 g Weight
- MPN: 101169823
- PPN: SCM-101169823
CAD
$189.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Rotary Drive for Potentiometer, 44.5 mm Diameter, IP67/IP69K, 50 g Weight
Features
- Rotary drive for Potentiometer
Documentation & Downloads
Specifications
Key Specifications
- Height
- 26 mm
Note
- Note (General)
- For mounting the potentiometer, a central-hole fastening and two different fastenings with three holes are provided.
Mechanical data - Dimensions
- Height
- 26 mm
- Diameter of the rotary button
- 26 mm
- Mounting diameter
- 22.3 mm
- Diameter of shaft, maximum
- 6 mm
- Thickness of the front panel, maximum
- 6 mm
Mounting depth50 mm
Diameter of the front ring44.5 mm
Shaft length30 … 40 mm
Thickness, of the front panel, minimum1.5 mm
Spacing50 x 60 mm
Scope of delivery
- Scope of delivery
- The potentiometers are not included in delivery and must be ordered from the manufacturers concerned.
General data - Features
- Mounting flange
- Yes
Fully insulatedYes
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- Without limit stop
- Sealing type
- Membrane | Lip gaskets
- Material of the potentiometer socket
- Brass, nickel-plated / stainless steel
- Colour of the operating element
- Black
- Colour of the rotary button
- Grey
VersionsDrehantrieb für Potentiometer
Installation conditions (mechanical)arbitrarily
Material of the front ringABS chrome-plated
Material of the rotary buttonABS
Colour of the front ringSilver
Gross weight50 g
Ambient conditions
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
Ambient temperature+0 ... +80 °C
Restistance to shock50 g
Mechanical data
- Mounting
- mounting flange
Tightening torque of the screw0.6 Nm
Approvals - Standards
- Certificates
- BG | cULus | IPA
