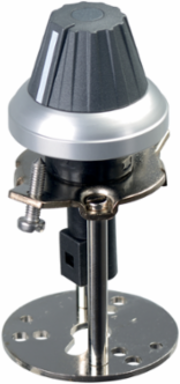

Schmersal 101188331 RDAN6 Automation Rotary Drive, IP65, 39.5 mm Diameter, 31 mm Height
- MPN: 101188331
- PPN: SCM-101188331
CAD
$221.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RDAN6 Automation Rotary Drive, IP65, 39.5 mm Diameter, 31 mm Height
Specifications
Key Specifications
| Height | 31 mm |
|---|
Mechanical data - Dimensions
| Height | 31 mm |
|---|---|
| Diameter of the rotary button | 19 mm |
| Mounting diameter | 22.3 mm |
| Diameter of shaft, maximum | 6 mm |
| Thickness of the front panel, maximum | 6 mm |
| Mounting depth | 63 mm |
|---|---|
| Diameter of the front ring | 39.5 mm |
| Shaft length | 30 … 40 mm |
| Thickness, of the front panel, minimum | 1.5 mm |
| Spacing | 50 x 60 mm |
General data - Features
| Mounting flange | Yes |
|---|
| Fully insulated | Yes |
|---|
General data
| Versions | Drehantrieb für Potentiometer |
|---|---|
| Material of the front ring | Aluminium |
| Material of the rotary button | ABS |
| Colour of the rotary button | Grey |
| Sealing type | Membrane | Lip gaskets |
|---|---|
| Material of the potentiometer socket | Brass, nickel-plated / stainless steel |
| Colour of the front ring | Silver |
| Gross weight | 50 g |
Ambient conditions
| Degree of protection | IP65 |
|---|
| Ambient temperature | +0 ... +80 °C |
|---|
Mechanical data
| Mounting | mounting flange |
|---|
| Tightening torque of the screw | 0.6 Nm |
|---|
