Wiegmann HW-121006CHQR NEMA 4X Continuous Hinge Quick Release Padlockable 12X10X6 Fiberglass-Opaque

MPN: HW-121006CHQR
UPC: 786725856145
PPN: HBL-HW-121006CHQR
UNSPSC: 39121324

$449.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

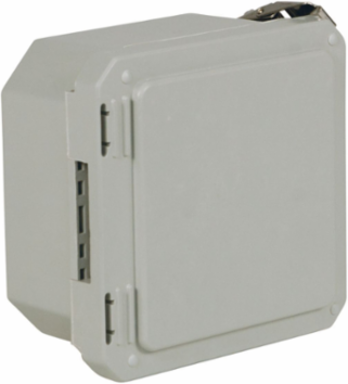

NEMA 4X Continuous Hinge Quick Release Padlockable 12X10X6 Fiberglass-Opaque

Features

Constructed of molded fiberglass
Continuous hinge with quick-release padlockable latches
Poured seamless gasket provides a water-tight and dust-tight seal
Optional mounting foot kit is available

Documentation & Downloads

Specifications

Key Specifications

Cubic Capacity	720 cu.in
NEMA Rating	4X
Stock Indicator	S - Shelf Stock
Country of Origin	United States
Depth	6 in
Weight	6 lb.
Cover Type	Hinged Cover
Nema Rating	4X
Class Code	P07
Freight Class Code	06316009
Image Actual Or Representative	R
Returnable Indicator	No
UL Listed	Yes
Series	Premier Series
BOX SIZE	7.400x15.750x13.900 (in)
Pallet Height	42.000 in
Pallet Weight	430.000 lb.
NAICS Code	3359326105

Mounting	Wall Mount
Standard	cULus
Carton - Total Units	1 EA
Color	Gray
Height	12 in
Width	10 in
Mounting Type	Wall Mount
Type	Enclosure
Description - Invoice	N4X CONT HNG QK REL PAD 12X10X6 FGL-OPAQ
Harmonization Code	3926909999
Lead Time	2 wk
Sub Class Code	P07P095
Material	Fiberglass
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00786725856145
Pallet Length	48.000 in
Pallet Width	40.000 in
