Wiegmann HW-J121005SC NEMA 4X JIC Screw Cover 12X10X5 Fiberglass-Opaque
- MPN: HW-J121005SC
- UPC: 786725857036
- PPN: HBL-HW-J121005SC
- UNSPSC: 39121324
CAD
$311.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

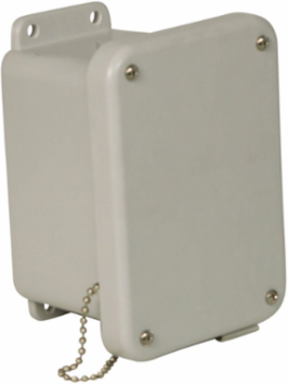

NEMA 4X JIC Screw Cover 12X10X5 Fiberglass-Opaque
Features
- Constructed of molded fiberglass
- Lift-off cover with four screws
- Poured seamless gasket provides a water-tight and dust-tight seal
- Mounting provisions are provided
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Actual Height
- 13.56 in
- Color
- Gray
- Cubic Capacity
- 600 cu.in
- Height
- 12 in
- NEMA Rating
- 4X
- Type
- Enclosure
- Weight
- 6.5 lb.
- Nema Rating
- 4X
- Description - Invoice
- N4X JIC SCREW COVER 12X10X5 FGL -OPAQ
- Harmonization Code
- 3926909989
- Lead Time
- 2 wk
- Stock Indicator
- S - Shelf Stock
- UL Listed
- Yes
- Series
- JIC Series
- BOX SIZE
- 7.500x14.050x12.450 (in)
- Carton - Total Units
- 1 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Actual Depth5.21 in
Actual Width11.43 in
Cover TypeScrew Cover
Depth5 in
MountingWall Mount
StandardcULus
Width10 in
Mounting TypeWall Mount
Class CodeP07
Freight Class Code06316009
Image Actual Or RepresentativeR
Returnable IndicatorNo
Sub Class CodeP07P095
MaterialFiberglass
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00786725857036
Pallet Height49.500 in
Pallet Weight369.000 lb.
NAICS Code335932
Certifications
- Buy American Compliant
- Contact Manufacturer
Certified ListedcULus
