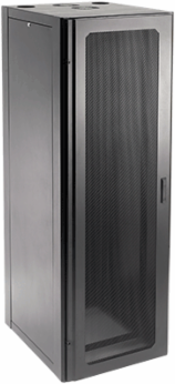

nVent Hoffman NS21611 Net Series Server Cabinet 84 Inch x 23.62 Inch, 43 Rack Units, Steel Construction
- MPN: NS21611
- UPC: 783510168025
- PPN: HOF-NS21611
CAD
$2458.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Net Series Server Cabinet 84 Inch x 23.62 Inch, 43 Rack Units, Steel Construction
Features
- Includes two sets of adjustable L-shaped rack angles for convenient equipment mounting
- Rack angles on communication cabinets have tapped 10-32 holes per EIA standards; Order 10-32 fasteners separately
- Rack angles on server cabinets have square holes per EIA standards. Order fasteners and cage nuts separately
- Rack angle settings on all 700- and 800-mm wide cabinets can accommodate either 19- or 23-in. rack spacing
- In 600-mm wide cabinets, equipment mounted on 19-in. rack angles is centered
- In 700- and 800-mm wide cabinets, 19-in. rack angles can be set to center equipment or to mount equipment next to the left or the right side for improved cable management
- Rack angles infinitely positionable within the cabinet for easy adjustment to desired position
- All doors are field removable and reversible with left or right hinging for installation flexibility
- Communication cabinet has fully perforated or window front and louvered rear doors for equipment ventilation
- Server cabinet has fully perforated front and split rear perforated doors for easy access to servers
- Doors have key-locking handles that provide security with convenient access for authorized personnel
- Removable side panels with quarter-turn key-locking latch are inset for flush appearance
- Two cable entry ports with caps and grommets on cabinet top for wiring ease
- Fan-ready top with integral finger guard. Order up to two 6-in. fans separately
- Caster- and leveler-ready open base design. Order casters and levelers separately
- Some models available with or without sides
- Welded multi-formed steel frame. The top and columns are 16 gauge; base is 14 gauge
- Multi-formed rigid doors are 14 gauge steel
- Window made of 1/8-in. smoke-tinted acrylic
- Formed solid sides are 14 gauge steel
- Rack angles are 12 gauge steel
- Ground studs provided on doors and covers
Documentation & Downloads
Specifications
Key Specifications
- Bulletin Number
- DC
- Model Code
- 16802
- Interchangeable
- False
- A in.
- 84
- C in.
- 45.8
- Description
- Server Cabinet
- N in.
- 14.71
- Additional Rack Angles
- NRAS216
MaterialSteel
Ship Wt. Std. Pkg. (lbs)385.0
Catalog NumberNS21611
B in.23.62
Rack Units43
M in.77.00
Rack Angle HolesSquare
StandardsUL 2416 Listed (perforated, split perforated and louvered door models only) || EIA 310-D || IEC 60529, IP20 || Perforated door material meets equipment manufacturer ventilation requirements
