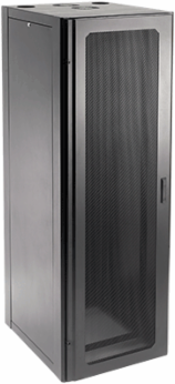

nVent Hoffman NS21711 Server Cabinet 84 Inch x 27.56 Inch, 43 Rack Units, Steel Construction

Description

Features

• Includes two sets of adjustable L-shaped rack angles for convenient equipment mounting
• Rack angles on communication cabinets have tapped 10-32 holes per EIA standards; Order 10-32 fasteners separately
• Rack angles on server cabinets have square holes per EIA standards. Order fasteners and cage nuts separately
• Rack angle settings on all 700- and 800-mm wide cabinets can accommodate either 19- or 23-in. rack spacing
• In 600-mm wide cabinets, equipment mounted on 19-in. rack angles is centered
• In 700- and 800-mm wide cabinets, 19-in. rack angles can be set to center equipment or to mount equipment next to the left or the right side for improved cable management
• Rack angles infinitely positionable within the cabinet for easy adjustment to desired position
• All doors are field removable and reversible with left or right hinging for installation flexibility
• Communication cabinet has fully perforated or window front and louvered rear doors for equipment ventilation
• Server cabinet has fully perforated front and split rear perforated doors for easy access to servers
• Doors have key-locking handles that provide security with convenient access for authorized personnel
• Removable side panels with quarter-turn key-locking latch are inset for flush appearance
• Two cable entry ports with caps and grommets on cabinet top for wiring ease
• Fan-ready top with integral finger guard. Order up to two 6-in. fans separately
• Caster- and leveler-ready open base design. Order casters and levelers separately
• Some models available with or without sides
• Welded multi-formed steel frame. The top and columns are 16 gauge; base is 14 gauge
• Multi-formed rigid doors are 14 gauge steel
• Window made of 1/8-in. smoke-tinted acrylic
• Formed solid sides are 14 gauge steel
• Rack angles are 12 gauge steel
• Ground studs provided on doors and covers
