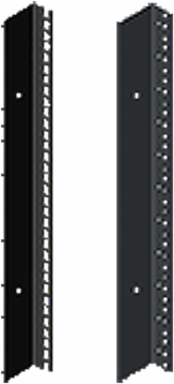

nVent Hoffman NRAS216 Net Series Rack Angles 78.87 Inch, 12 Gauge Steel, Fits 600 mm Cabinets
nVent Hoffman NRAS216 Net Series Rack Angles 78.87 Inch, 12 Gauge Steel, Fits 600 mm Cabinets
- MPN: NRAS216
- UPC: 783510168155
- PPN: HOF-NRAS216
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$243.38/ EA
Description
Net Series Rack Angles 78.87 Inch, 12 Gauge Steel, Fits 600 mm Cabinets
Features
- Includes two sets of adjustable L-shaped rack angles for convenient equipment mounting
- Rack angles on communication cabinets have tapped 10-32 holes per EIA standards. Order 10-32 fasteners separately
- Rack angles on server cabinets have square holes per EIA standards. Order fasteners and cage nuts separately
- Rack angle settings on all 700- and 800-mm wide cabinets can accommodate either 19- or 23-in. rack spacing
- In 600-mm wide cabinets, equipment mounted on 19-in. rack angles is centered
- In 700- and 800-mm wide cabinets, 19-in. rack angles can be set to center equipment or to mount equipment next to the left or the right side for improved cable management
- Rack angles infinitely positionable within the cabinet for easy adjustment to desired position
- All doors are field removable and reversible with left or right hinging for installation flexibility
- Communication cabinet has fully perforated or window front and louvered rear doors for equipment ventilation
- Server cabinet has fully perforated front and split rear perforated doors for easy access to servers
- Doors have key-locking handles that provide security with convenient access for authorized personnel
- Removable side panels with quarter-turn key-locking latch are inset for flush appearance
- Two cable entry ports with caps and grommets on cabinet top for wiring ease
- Fan-ready top with integral finger guard. Order up to two 6-in. fans separately
- Caster- and leveler-ready open base design. Order casters and levelers separately
- Some models available with or without sides
- Welded multi-formed steel frame. The top and columns are 16 gauge; base is 14 gauge
- Multi-formed rigid doors are 14 gauge steel
- Window made of 1/8-in. smoke-tinted acrylic
- Formed solid sides are 14 gauge steel
- Rack angles are 12 gauge steel
- Ground studs provided on doors and covers
Specifications
Specifications
- Bulletin Number
- DC
- Ship Wt. Std. Pkg. (lbs)
- 27.0
- Catalog Number
- NRAS216
- Length in.
- 78.87
Model Code16815
InterchangeableFalse
Hole TypeSquare
Use with Net Series Cabinet H x W2134 x 600
