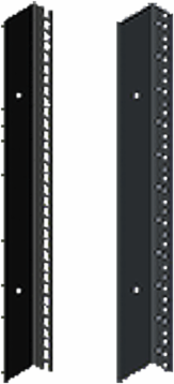

nVent Hoffman NRAT217 Net Series Rack Angles 78.87 Inch, Tapped Holes for Equipment Mounting
nVent Hoffman NRAT217 Net Series Rack Angles 78.87 Inch, Tapped Holes for Equipment Mounting
- MPN: NRAT217
- UPC: 783510168988
- PPN: HOF-NRAT217
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$308.00/ EA
Description
Net Series Rack Angles 78.87 Inch, Tapped Holes for Equipment Mounting
Features
- Includes two sets of adjustable L-shaped rack angles for convenient equipment mounting
- Rack angles on communication cabinets have tapped 10-32 holes per EIA standards. Order 10-32 fasteners separately
- Rack angles on server cabinets have square holes per EIA standards. Order fasteners and cage nuts separately
- Rack angle settings on all 700- and 800-mm wide cabinets can accommodate either 19- or 23-in. rack spacing
- In 600-mm wide cabinets, equipment mounted on 19-in. rack angles is centered
- In 700- and 800-mm wide cabinets, 19-in. rack angles can be set to center equipment or to mount equipment next to the left or the right side for improved cable management
- Rack angles infinitely positionable within the cabinet for easy adjustment to desired position
- All doors are field removable and reversible with left or right hinging for installation flexibility
- Communication cabinet has fully perforated or window front and louvered rear doors for equipment ventilation
- Server cabinet has fully perforated front and split rear perforated doors for easy access to servers
- Doors have key-locking handles that provide security with convenient access for authorized personnel
- Removable side panels with quarter-turn key-locking latch are inset for flush appearance
- Two cable entry ports with caps and grommets on cabinet top for wiring ease
- Fan-ready top with integral finger guard. Order up to two 6-in. fans separately
- Caster- and leveler-ready open base design. Order casters and levelers separately
- Some models available with or without sides
- Welded multi-formed steel frame. The top and columns are 16 gauge; base is 14 gauge
- Multi-formed rigid doors are 14 gauge steel
- Window made of 1/8-in. smoke-tinted acrylic
- Formed solid sides are 14 gauge steel
- Rack angles are 12 gauge steel
- Ground studs provided on doors and covers
Specifications
Specifications
- Bulletin Number
- DC
- Ship Wt. Std. Pkg. (lbs)
- 30.0
- Catalog Number
- NRAT217
- Length in.
- 78.87
Model Code16898
InterchangeableFalse
Hole TypeTapped
Use with Net Series Cabinet H x W2134 x 700
