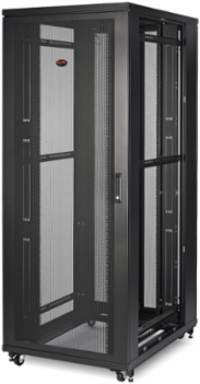

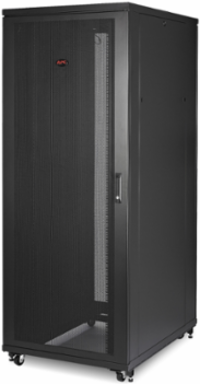

APC AR2480 NetShelter SV Server Rack Enclosure, 42U, 31.50 Inch Width, 41.73 Inch Depth, 287.70 lb Weight

  • MPN: AR2480
  • UPC: 731304302070
  • PPN: APC-AR2480

CAD

$2888.06

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

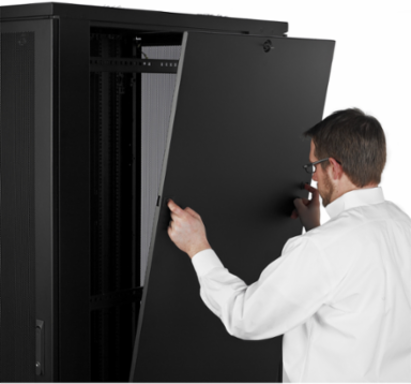

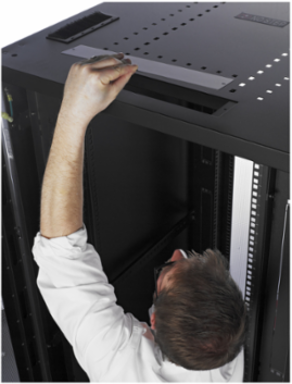

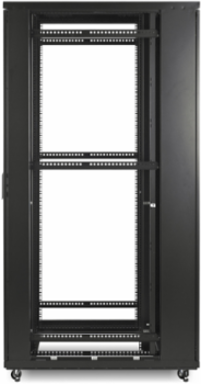

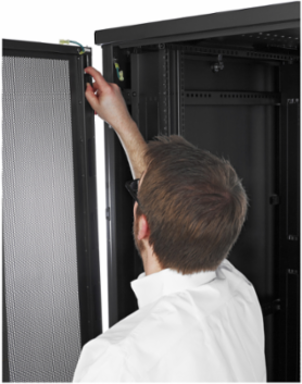

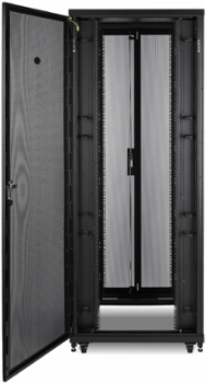

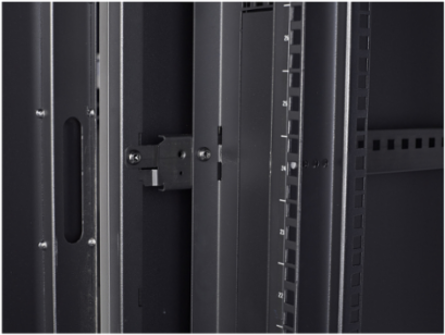

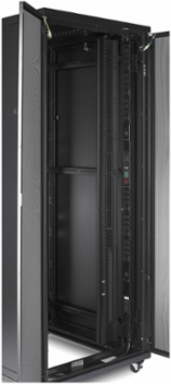

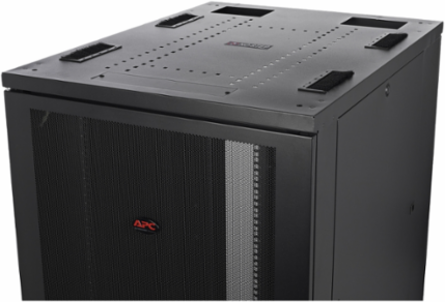

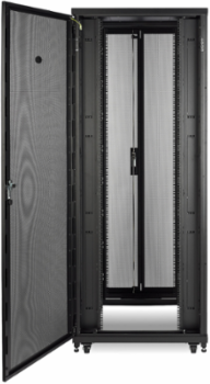

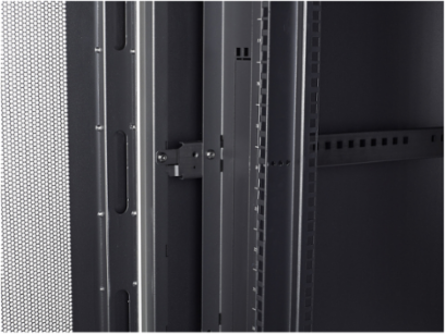

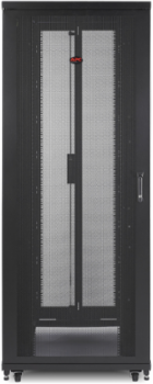

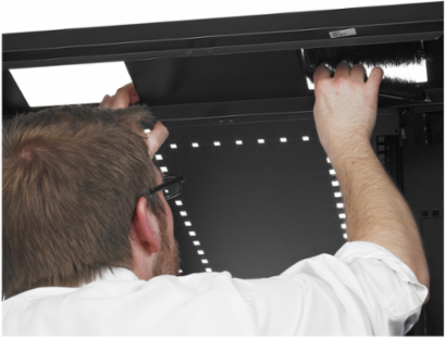

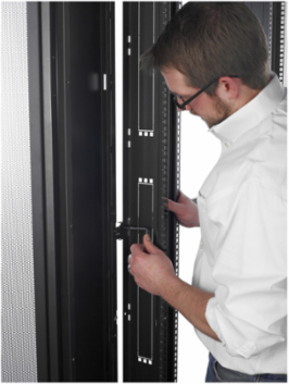

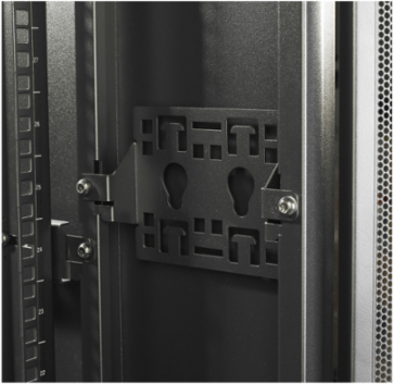

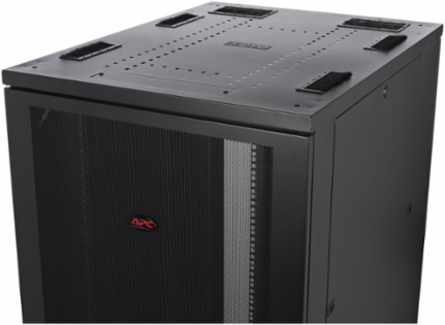

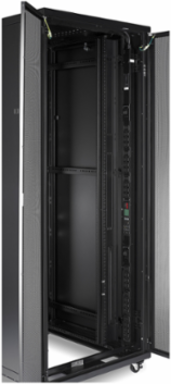

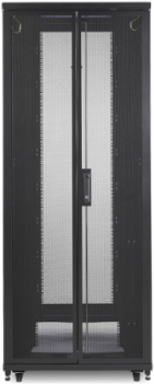

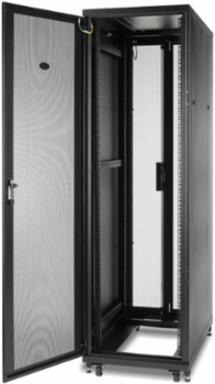

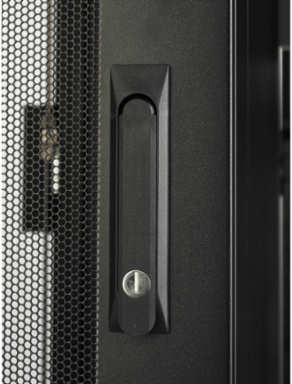

NetShelter SV Enclosures offer the same quality and reliability as NetShelter SX in a cost-effective platform with all the essential features you need. This wide-depth rack offers large roof openings and 4 preinstalled brushes for cables to pass through. The front roof opening includes a removable panel, while the rear is open with the option to cover with brush strips (sold separately). All equipment mounting rails are fully adjustable in 0.4" (10mm) increments, and 1U devices can be mounted vertically between the rail and side panel. The reversable flat front door provides 69% ventilation, and the rear doors are split to allow for clearance. Accessory mounting brackets are included with the enclosure for mounting a variety of rack PDUs and cable management accessories. This rack fits easily through standard doorways, ships fully assembled and includes a 5 year manufacturer's warranty.

Features

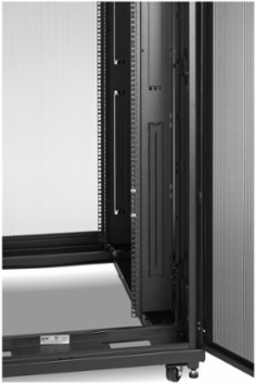

  • 800mm 32 in wide enclosures include vertical 19" width 1U knockouts adjacent the enclosures standard EIA-310 equipment mounting u-spaces that can be removed and replaced with 1U accessories. Replace these knockouts with accessories such as patch panels, environmental management devices, Rack Power Distribution, or even pass-through brush strips for cabling pass-through.
  • Essential server rack features for cost-effective, fast IT deployments
  • Ideal for low-to-medium density networking or computing

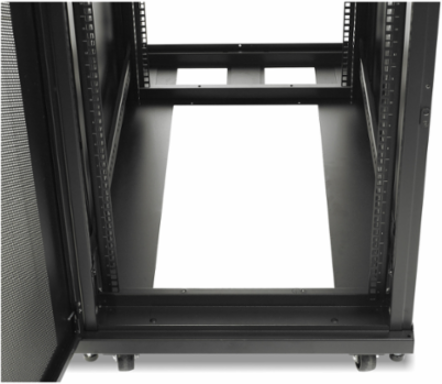

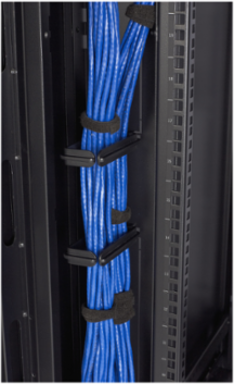

  • Flexible cable routing through roof or rack bottom

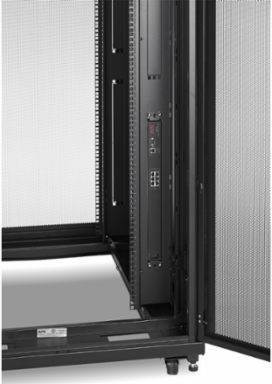

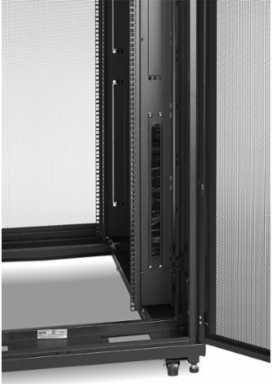

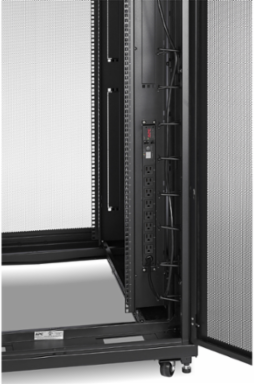

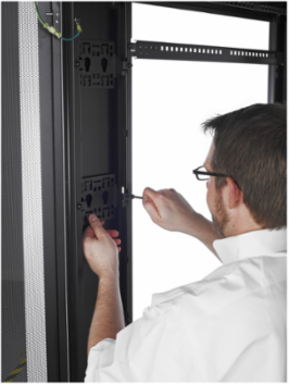

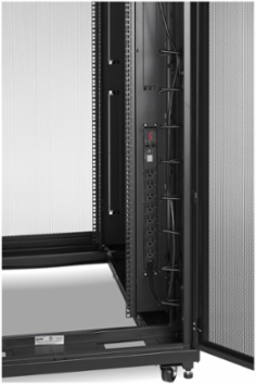

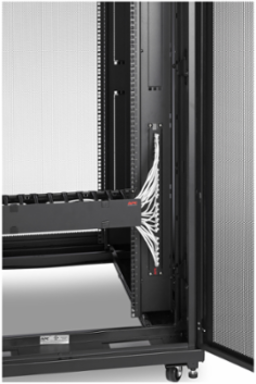

  • 4 vertical accessory brackets free up Uspace
  • Compatible with 60+ accessories for organization, airflow, and ease of use

Documentation & Downloads

Specifications

Additional

Rack Units42U
Width31.50 in (80 cm)
Weight287.7 lb (130.5 kg)
Load Capacity Dynamic1014 lb
Material Thickness14 ga mounting rail, 16 ga front/rear doors, 18 ga post, 19 ga roof, 18 ga side panels
ComplianceUL 2416, UL 60950-1, EIA-310E
Height80.98 in (205.7 cm)
Depth41.73 in (106 cm)
Load Capacity Static2205 lb
Rack Width19 in
RoHS ComplianceCompliant
Country of OriginChina
