APC AR112 NetShelter 12U Wallmount Rack Cabinet 23.58 Inch Depth 24.41 Inch Height Unassembled
- MPN: AR112
- UPC: 731304317289
- PPN: APC-AR112
CAD
$794.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

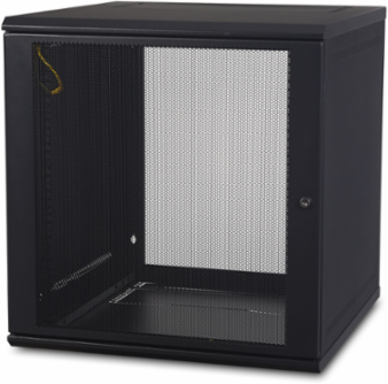

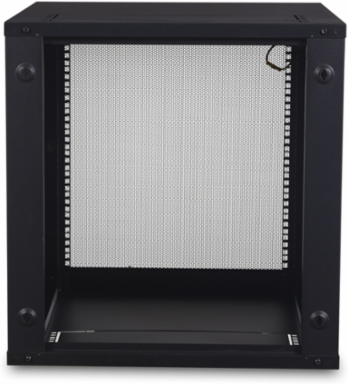

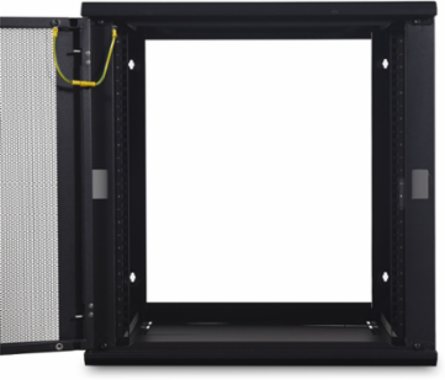

NetShelter 12U Wallmount Rack Cabinet 23.58 Inch Depth 24.41 Inch Height Unassembled
Features
- Flat pack unassembled wall box — Wallbox ships unassembled making it easy to transport and feasible to store.
- The Wallbox is designed for quick and easy assembly and includes a template for mounting to a wall. — The Wallbox is designed for quick and easy assembly and includes a template for mounting to a wall.
- Wallbox Sizes — Unassembled wall-mount enclosures are available in three sizes, 6U, 9U and 12U to accomdate a variety of needs.

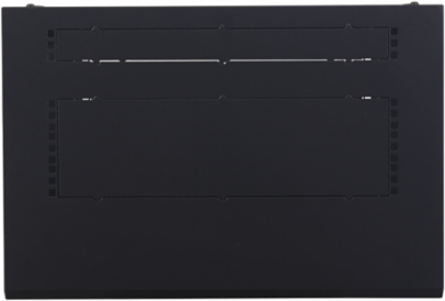

- Wallbox cable and accessory integration — The bottom and roof of the Wallbox has easy to remove knock outs. This knocks can be used for cable exits or to install a 1U accessory such as a fan or patch panel.
Documentation & Downloads
Specifications
Additional
| Rack Height | 12U |
|---|---|
| Weight | 40.30 lb (18.28 kg) |
| Height | 24.41 in (62 cm) |
| Rack Width | 19 in |
| Minimum Mounting Depth | 16.8 in |
| Standards | EIA-310E |
| Reach | Free of SVHC |
| Color | Black |
| Product Orientation | No preference |
| Permanent Permissible Load | 200 lb static |
|---|---|
| Width | 23.58 in (59.9 cm) |
| Depth | 23.58 in (59.9 cm) |
| Maximum Mounting Depth | 20.8 in |
| Mounting Support | Wall |
| RoHS Compliance | Compliant |
| WEEE | EU Waste Compliant |
| Customs Number | 9403200090 |
