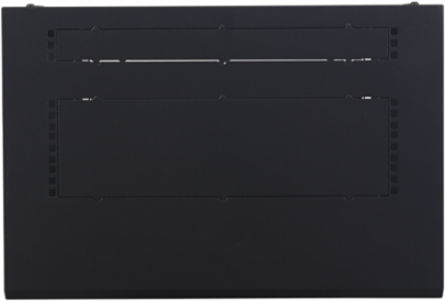

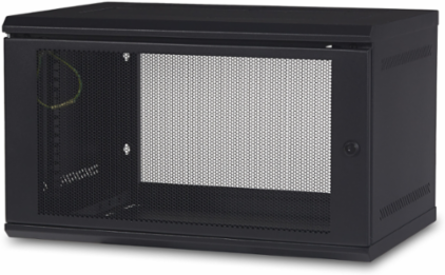

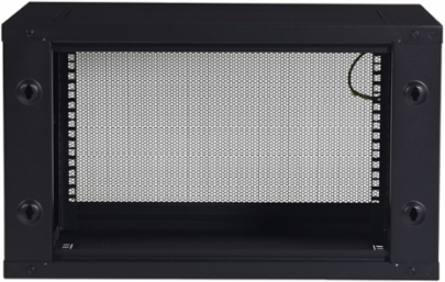

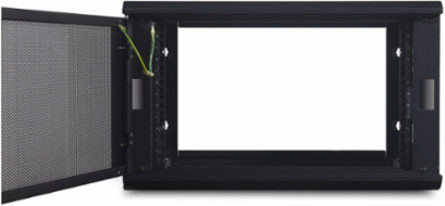

APC AR106 6U Wallmount Rack Enclosure Cabinet, 15.75 Inch Depth, 20.70 lb Weight, Unassembled
- MPN: AR106
- UPC: 731304317265
- PPN: APC-AR106
CAD
$447.76
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Ideal for retail, healthcare, and educational facilities, the wall rack offers an efficient solution for deploying server and networking equipment for edge computing applications. For areas with limited floor space. Designed to house your server, as well as network solutions such as network switches and patch panels. Rack is packaged unassembled for smaller storage and delivery and takes up to 60% less space than assembled alternatives. The door is reversible allowing for the door to open direction desired to avoid interference with its surroundings. Optional 120V fan tray top/bottom mounted. Top/bottom feature knockouts 1/2U of mounting space for accessories. Several APC Smart-UPS models low-profile provide easy UPS integration and mounting. 6U Wall mount cabinet, 8.9 to 12.9 inches mounting depth, 200lb weight capacity, 19"" rack width, ships unassembled, 5 year APC warranty
Features
- Wallbox ships unassembled making it easy to transport and feasible to store.
- The Wallbox is designed for quick and easy assembly and includes a template for mounting to a wall.
- Unassembled wall-mount enclosures are available in three sizes, 6U, 9U and 12U to accomdate a variety of needs.
- The bottom and roof of the Wallbox has easy to remove knock outs. This knocks can be used for cable exits or to install a 1U accessory such as a fan or patch panel.
- Efficient and secure edge computing solution when floor space is limited
- Wallmount Rack Enclosure
- 6U, 400mm deep, Max. load 200lb
- Reversible single-hinge door
- Keyed handle
- Ventilated
- 1/2U knockouts top/bottom
- Includes hardware
- Fan tray AR8213 is sold separately
- Ships unassembled, 5 year APC warranty
Documentation & Downloads
Specifications
Additional
| Number of Rack Units | 6U |
|---|---|
| Height | 14.02 in (35.6 cm) |
| Depth | 15.75 in (40 cm) |
| Maximum Mounting Depth | 12.95 in |
| Net Weight | 20.70 lb (9.39 kg) |
| RoHS | Compliant |
| Reach | Contains SVHC above threshold |
| Customs Number | 9403200090 |
| Color | Black |
| Permanent Permissible Load | 200 lb static |
|---|---|
| Width | 23.58 in (59.9 cm) |
| Rack Width | 19 in |
| Minimum Mounting Depth | 8.90 in |
| Mounting Support | Wall |
| WEEE | EU Waste Compliant |
| Warranty | 60 months |
| Product Orientation | No preference |
