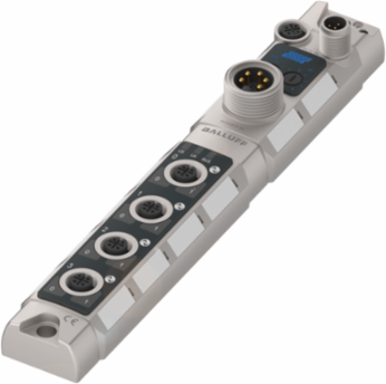

Balluff BNI PBS-507-001-Z011 Network blocks for Profibus BNI PBS-507-001-Z011
- MPN: BNI PBS-507-001-Z011
- PPN: BAL-BNI003P
CAD
$745.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
As a full-service provider, Balluff offers a wide range of components for optimum Profibus use. The mature fieldbus technology has been reliably supporting modern production for many years. Regardless of the controller manufacturer, you will find the optimum solution in our range of products.
Documentation & Downloads
Specifications
Key Specifications
- Principle of operation
- Active splitter
- Operating voltage Ub
- 18-30.2 VDC
- Connection (COM 2)
- Bus out: M12x1-Female, 5-pin, B-coded
- Connection ports
- 4x M12x1-Female, 5-pin, A-coded
- Digital outputs
- 8x PNP
- Output current max.
- 2 A
- Housing material
- Zinc, Die casting
- Ambient temperature
- -5-70 °C
- Auxiliary interfaces
- 4x IO-Link
- Port-class
- Type A
InterfaceProfibus DP EN 50170
Connection (COM 1)Bus in: M12x1-Male, 5-pin, B-coded
Connection (supply voltage IN)7/8"-Male, 5-pin
Digital inputs8x PNP, Type 2
Configurable inputs/outputsyes
Current sum UA, actuator9.0 A
Dimension37 x 32.4 x 224 mm
IP ratingIP67
IO-Link version1.0
