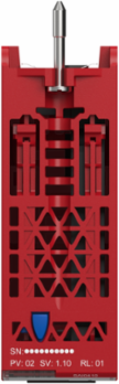

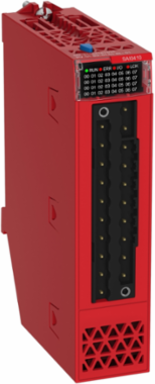

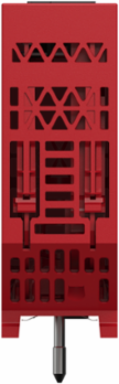

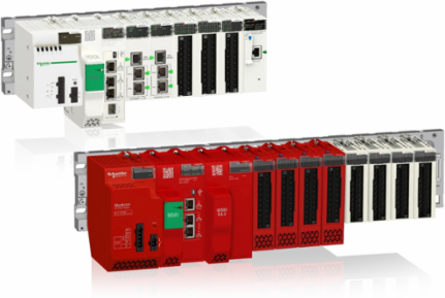

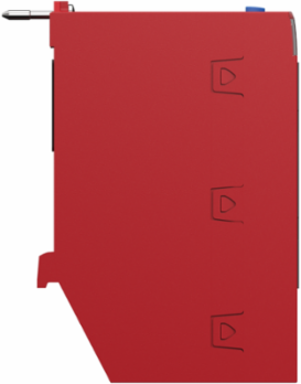

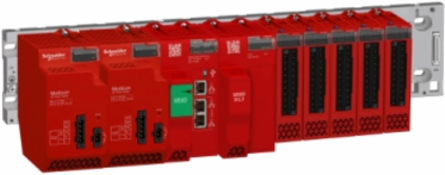

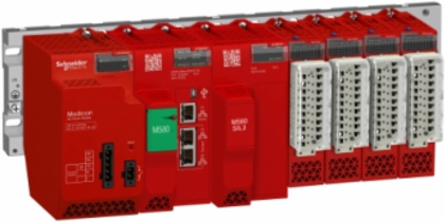

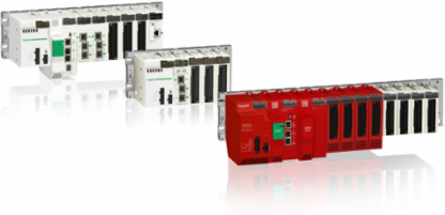

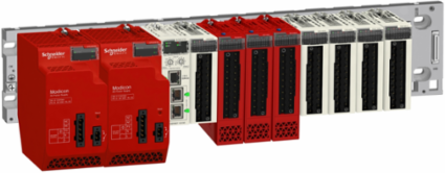

Schneider Electric BMXSAI0410 Modicon X80 Safety Analog Input Module, 4 Isolated Inputs, 4-20mA
- MPN: BMXSAI0410
- PPN: SCH-BMXSAI0410
- UNSPSC: 26101205
CAD
$2097.09
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

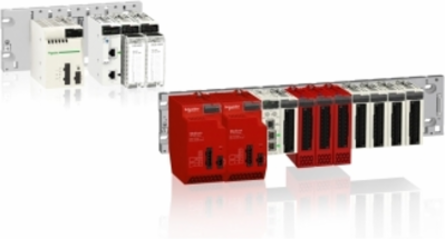

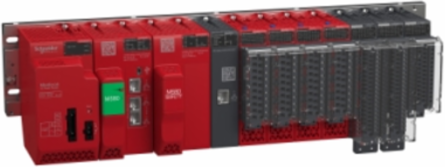

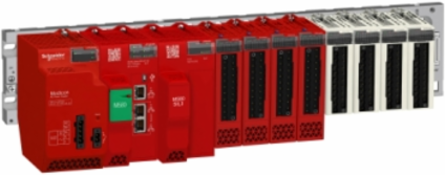

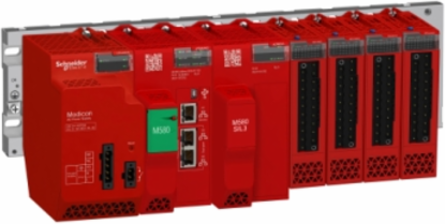

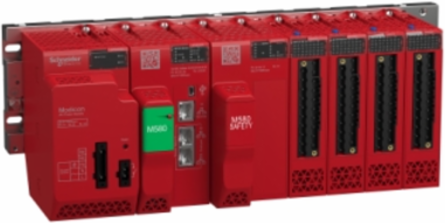

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This safety analog input module offers 4 isolated inputs. It supports resistive type of inputs. It is the Modicon analog input module dedicated to M580 safety systems. It is connected via a 20-way removable terminal block. It features a 16-bit resolution. It has a red coating specific to Safety products. It is suitable for safety most demanding applications. This product is certified by CE and UL, and also by ATEX and IECEx for use in explosive atmospheres. It complies up to SIL 3, Category 4, PLd. This module can only be used with a Safety CPU. The I/O module height is larger than the height of a rack (Ethernet or X-bus) and should be considered before installing the rack. It can be installed either in a local or a remote rack. Modicon X80 is a platform of modules common to Modicon M580 and M340 automation platforms that reduces maintenance and training costs with same spare parts in stock, and unique training for various Programmable Automation Controllers (PAC). Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Features
- Safety analog input for M580
- CIP safety compliant
- TÜV Rheinland certified
- Current out of range detection
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Weight | 344 g |
|---|
Complementary Attributes
| Maximum Conversion Value | 0...25 mA 4...20 mA |
|---|
| Minimum Crosstalk Attenuation | 120 dB |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM8, SI |
|---|---|
| Digital Value Format | +/- 32000 in user scale, +/- 10000 by default, +/- 32000 in user scale, +/- 10000 by default |
| Isolation Voltage | 500 V DC between channels1500 V DC between channels and ground, 1500 V DC between channels and bus |
| Status Led | 1 LED (Green) RUN1 LED per channel (Green) channel diagnostic1 LED (Red) ERR, 1 LED (Red) I/O |
| Carbon Footprint Of The Distribution Phase A4 | 0.04498373333333334, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.2925490666666667, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 144 kg CO2 eq., 144.39545454545453 |
| Local Publishable Date | 2026-02-13 |
| Device Type | PLC System - PLC Component |
| Traceability | Yes |
| Average Life Duration | 20 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Electrical Connection | 20 ways 1 connector |
| Mtbf Reliability | 463000 H |
| Precision Of Internal Conversion Resistor | 0.1 % - 15 ppm/°C |
| Product Or Component Type | analog input module |
| Recalibration | internal |
| Shock Resistance | 15 gn |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 165 kg CO2 eq. |
| Vibration Resistance | 3 gn |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | The module detect the AC discrete input signal and convert it to the logic state , to be processed by PLC processor. This module as the Modicon X80 range has a long life cycle for about more than 10 years with a 100% use rate. Typical electrical power is 0.2508W (0.76 mA at 3.3 V DC).& 10& 10UL 61010-2-201& 10CSA C22.2 No 61010-2-201 |
| Functional Unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 269.6328 |
| Persona Type Names | End User, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Environmental Characteristic | gas resistant class Gx, gas resistant class 3C4dust resistant class 3S4, sand resistant class 3S4salt resistant level 2mold growth resistant class 3B2, fungal spore resistant class 3B2, fungal spore resistant class 3B2 IEC 60721-3-3 |
| Measurement Error | <= 0.3 % of full scale 4...20 mA - 25...60 °C, <= 0.3 % of full scale 4...20 mA - 25...60 °C, <= 0.3 % of full scale 4...20 mA - 25...60 °C<= 0.3 % of full scale 4...20 mA - 25...60 °C, <= 0.3 % of full scale 4...20 mA - 25...60 °C, <= 0.3 % of full scale 4...20 mA - 25...60 °C |
| Certificate Agency | TÜV, CSA, EAC, RCM, UL, ATEX, Merchant Navy |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.4 kg CO2 eq., 0.4037298666666667 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 19 kg CO2 eq., 19.44173333333333 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2402023EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2438 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Current Consumption | 200 mA 3.3 V DC115 mA 24 V DC |
| Measurement Resolution | 2 µA 4...20 mA |
| Nominal Read Cycle Time | 6 ms for 4 channels |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Modicon X80 |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Temperature Drift | 30 ppm/°C 4...20 mA |
| Type Of Filter | second order digital filtering |
| Database Version | 2022-01 |
| Analog/Digital Conversion | 16 bits |
| Customs Code | 8538908180 |
| Packaging Weight In G | 140.2 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-60 °C, -25-60 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 164.57845054545453 |
| Environmental Disclosure | ENVPEP2402023EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2402023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2402023EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...6561.68 ft (0...2000 m)2000...5000 m with derating factor |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 5-95 % 55-55 °C without condensation |
| Pep Verification Date | 2023-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | analog input module |
|---|
| Range Of Product | Modicon X80 |
|---|
ETIM
| ETIM 8 | EC001420 |
|---|---|
| ETIM 10 | EC001420 |
| ETIM 9 | EC001420 |
|---|
Input Attributes
| Analogue Input Resolution | 13 bits, 0...12500 counts |
|---|---|
| Analogue Input Type | current 4...20 mA |
| Input Level | high level |
| Permitted Overload On Inputs | 25 mA 4...20 mA |
| Analogue Input Number | 4 |
|---|---|
| Input Impedance | 286 Ohm |
| Input Output Isolation | isolated |
